Installing Front-Axle Support
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order.
Observe specified tightening torques
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

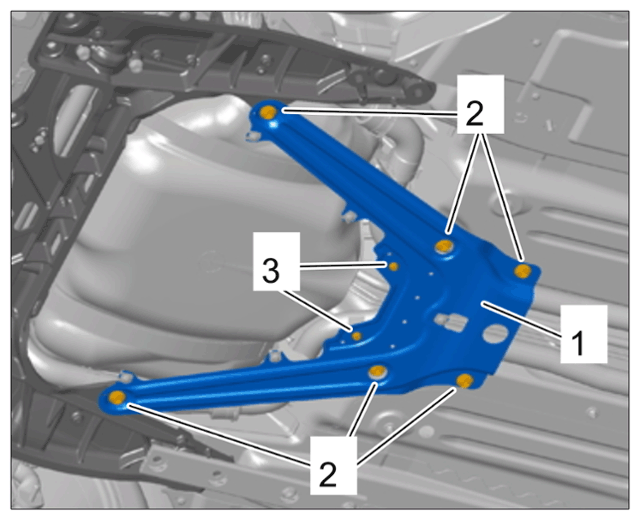

Mounting for front-axle support
- Front-axle support
- Hexagon-head bolt/hexagon nut (M10) > Tightening torque 65 Nm (47.9 ftlb.)
- Hexagon-head bolt (M6) > Tightening torque 10 Nm (7.4 ftlb.)
