Removing Positive Crankcase Ventilation Line (Short Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

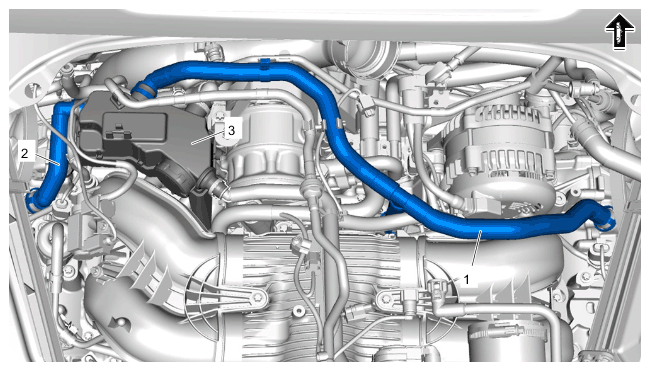

Installation positions of positive crankcase ventilation lines

1. Positive crankcase ventilation line, long section
2. Positive crankcase ventilation line, short section
3. Oil separator

1. Release and disconnect electric plug connection -1-  .
2. Unscrew fastening screws -2-  .
3. Set solenoid valve -3-  with vacuum lines connected aside.
4. Release and disconnect electric plug connection -4-  .
5. Unclip electric line -5-  and move it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

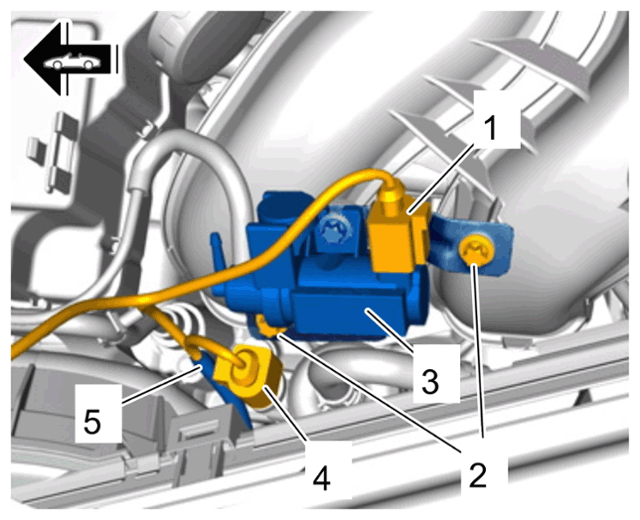

   Removing solenoid valve

6. Release plug-in couplings -7 and 8-  using a suitable tool and pull them off.
7. Remove short section -6-  of positive crankcase ventilation line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing short section, shown on removed engine
