Removing Positive Crankcase Ventilation Line (Long Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation positions of positive crankcase ventilation lines

1. Positive crankcase ventilation line, long section
2. Positive crankcase ventilation line, short section
3. Oil separator

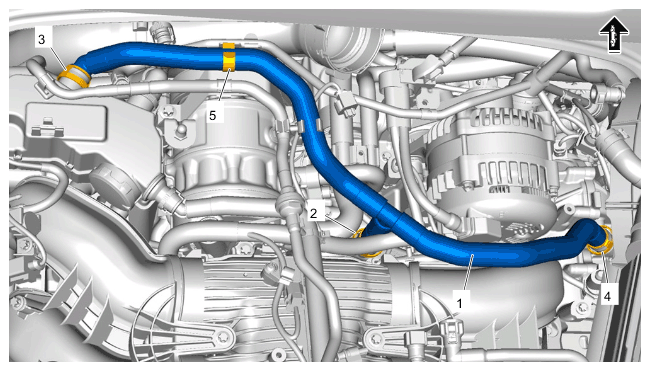

1. Release positive crankcase ventilation line -1-  at the plug-in couplings -2, 3 and 4-  using a suitable tool and pull them off.
2. Unclip positive crankcase ventilation line -1-  from the retaining clip -5-  on the air-conditioning compressor.
3. Carefully guide out positive crankcase ventilation line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Long section, shown on removed engine
