Subsequent Work

Subsequent work for cylinder bank 3-4:

1. Secure engine ground strap -1-  to the body -2-  .

   M8 screw:  > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine ground strap

2. Install vacuum line -1-  for brake booster.
   1. 2.1 Check that the line is fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

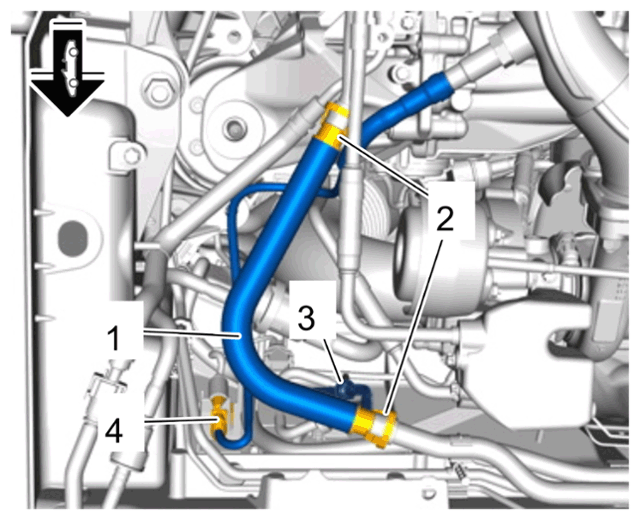

   Brake booster line, plug connection for oxygen sensor

   Subsequent work for cylinder bank 1-2:

3. Install catalytic converter with cross tube.

   > 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER .

   Further work:

4. Install diagonal braces.

   > 421320 REMOVING AND INSTALLING STRUTS .

5. Install cover for underbody.

   > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

6. Install air guide for raw-air intake on the air cleaner housing.
7. Install engine compartment lid.

   > WM, 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID
