Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove engine compartment lid.
> WM, 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID

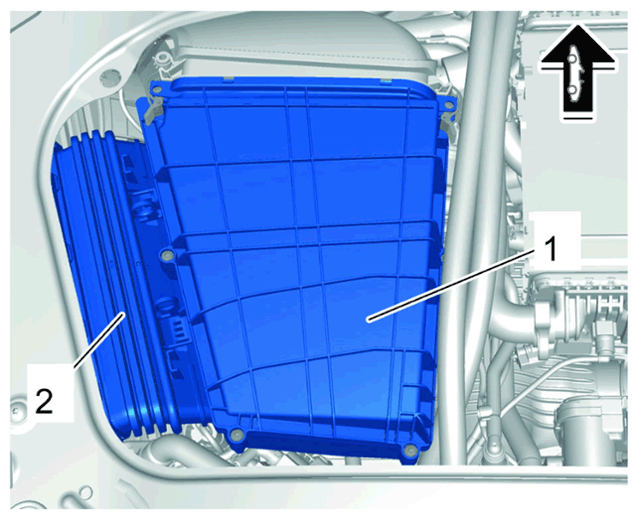

Remove air guide for raw-air intake on the air cleaner housing -1- .
1. 2.1 Carefully pull safety clips and remove air guide -2- by moving it to the side.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for air cleaner housing
Remove underbody cover.
> WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY
Remove diagonal braces.
> 421320 REMOVING AND INSTALLING STRUTS .

Preliminary work for cylinder bank 1-2:
Remove catalytic converter with cross tube.
> 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER .

Preliminary work for cylinder bank 3-4:

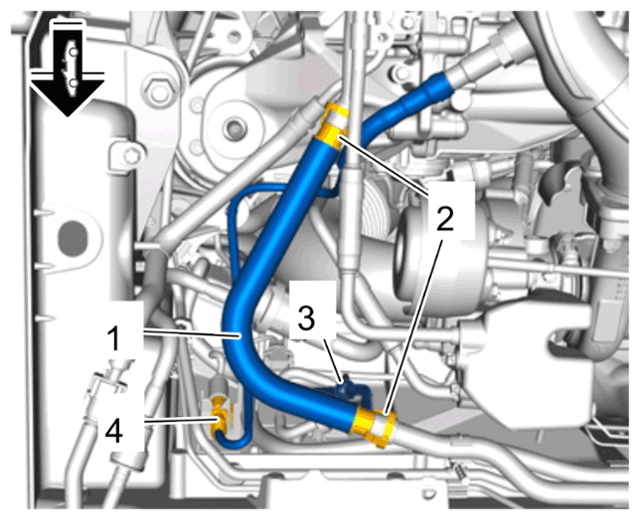

Remove vacuum line -1- for brake booster.
1. 6.1 Press locking rings -2- and pull off the line.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake booster line, plug connection for oxygen sensor

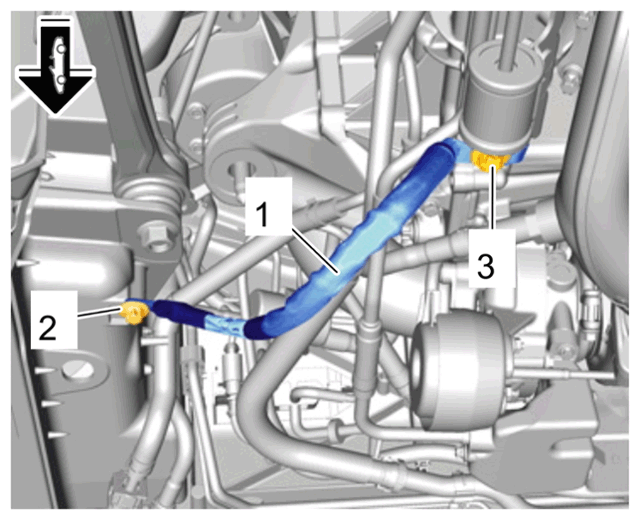

Loosen engine ground strap -1- on the body -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine ground strap
