WM, 1001Z1 - Disassembling Engine: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image
Disassembly tool, short	Special tool	> 9764/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assembly tool	Special tool	> 9776/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assembly tool	Special tool	> 9776/3	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disassembly tool	Special tool	> 9777/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assembly aid for pistons	Special tool	> 9787/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assembly aid for pistons	Special tool	> 9787/5	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

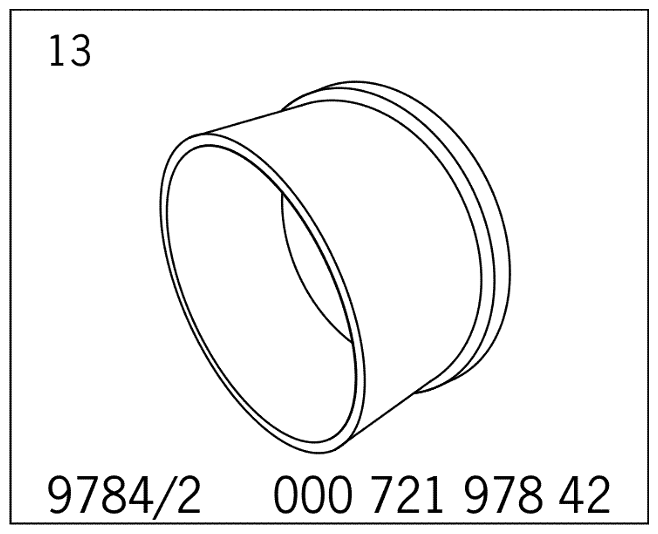

Funnel	Special tool	> 9784/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Funnel	Special tool	> 9784/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Staking tool	Special tool	> 9888	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

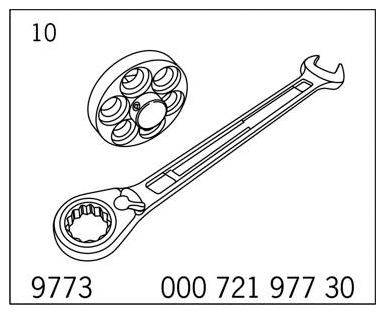

turning device	Special tool	> 9773	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
locating pin	Special tool	> 9595/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
mounting parts	Special tool	> 9590	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
