Preliminary Work
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.
Information
- All engine repairs must be carried out using only the specified tools.
- Only these tools have been tested and approved.
Information
- The bracket for the oil cooler must not be removed at an angle or levered off at one side.
- The bracket's aluminium supports can break off in the crankcase.
- Remove the engine.
> 100119 REMOVING AND INSTALLING ENGINE - article on "Removing".
- Remove transmission.
> 343527 REMOVING AND MOUNTING TRANSMISSION - article on "Removing".
> 373427 REMOVING AND MOUNTING PORSCHE DOPPELKUPPLUNG (PDK) - article on "Removing".
- Support the engine on the engine assembly support.
> 1001IN TOOLS FOR REMOVING/INSTALLING UNITS AND WORKING ON ASSEMBLY SUPPORT .
- Drain engine oil.
> 170117 DRAINING AND FILLING ENGINE OIL - article on "Draining"
.
- 4.1 Unscrew oil drain plug and collect engine oil.
- 4.2 Screw in and tighten screw with new seal.
> Tightening torque 50 Nm (37 ftlb.)
- Remove charge air cooler.
> 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER - article on "Removing".

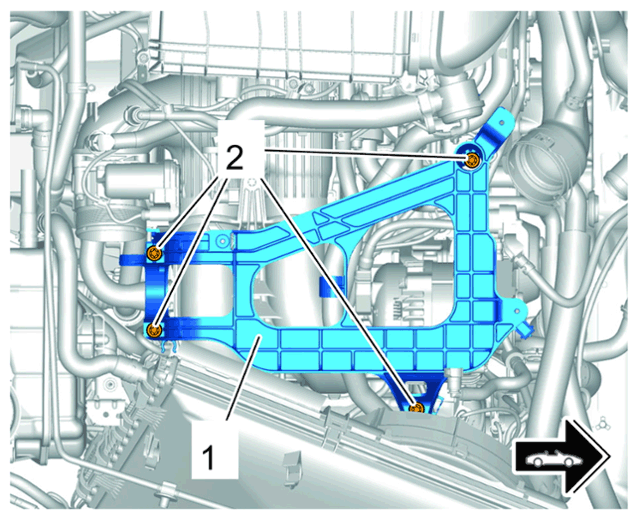

- Remove charge-air cooler holder -1-
.
> 214219 REMOVING AND INSTALLING CHARGE-AIR COOLER HOLDER - article on "Removing".
Fastening screws on charge-air cooler holder
- Loosen oxygen sensor cable.
- Remove catalytic converter with cross tube.
> 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER - article on "Removing".
- Remove engine carrier bracket.
> 103019 REMOVING AND INSTALLING ENGINE CARRIER (BRACKET) - article on "Removing".
- Remove tank vent line with valve.
> 202319 REMOVING AND INSTALLING TANK VENT VALVE - article on "Removing".
- 10.1 Loosen seven retaining clips and disconnect line on the intake-air distributor.
- Remove drive belt.
> 137819 REMOVING AND INSTALLING DRIVE BELT - article on "Removing".
Engine support, air-conditioning compressor, oil separator, turbocharger components:
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

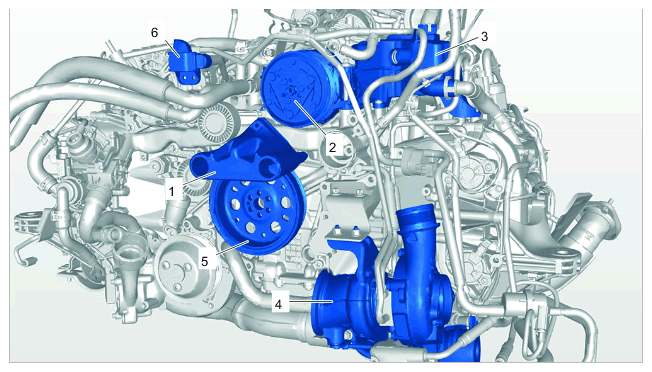

Component overview - engine support, air-conditioning compressor, oil separator, turbocharger, B+ socket
- Engine support
- Air-conditioning compressor
- Oil separator
- Turbocharger
- Vibration damper (2.0-liter variant shown)
- B+ socket
- Remove engine support -1-
.
- 12.1 Unscrew screws - M8 (2x) and M6 (1x) - and remove engine support.
- Remove intake-air distributor completely.
> 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - article on "Removing".
- 13.1 Disconnect all cable plugs and other plug connections.
- Loosen wastegate control valve on intake-air distributor 3-4 (2 screws)
- Cable plug for throttle housing, intake manifold pressure sensor
- Tank vent line connection
- Positive crankcase ventilation connection
- 13.1 Disconnect all cable plugs and other plug connections.
- Remove air-conditioning compressor -2-
.
> WM, 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR
- Remove oil separator -3-
.
> 105519 REMOVING AND INSTALLING OIL SEPARATOR - article on "Removing".
- 15.1 Disconnect the vent lines.
- 15.2 Unscrew external Torx screws (M6 x 25) and pull off the oil separator.
- 15.3 Replace O-rings on the oil separator.
- Remove turbocharger -4-
with lines.
> 213019 REMOVING AND INSTALLING TURBOCHARGER - article on "Removing".
> 213019 REMOVING AND INSTALLING TURBOCHARGER (VTG) - article on "Installing".
- 16.1 Loosen line connections and disconnect cable plugs.
- 16.2 Loosen turbocharger at the exhaust manifold flange and remove it.
- Remove vibration damper -5-
.
> 137519 REMOVING AND INSTALLING VIBRATION DAMPER (2.0 L) - article on "Removing".
> 137519 REMOVING AND INSTALLING VIBRATION DAMPER (2.5 L) - article on "Removing".
- Unscrew collar nuts for B+ socket -6- on the holder.
- Remove exhaust manifold -1-
.
> 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD - article on "Removing".
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

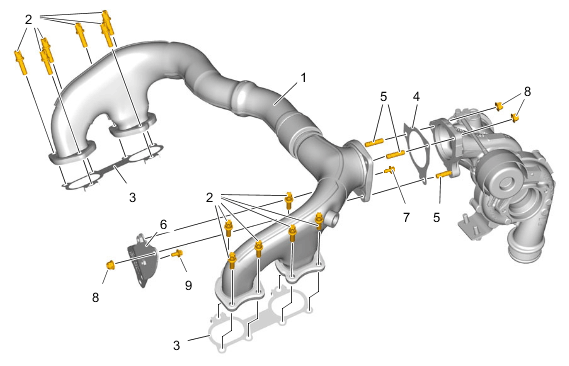

Assembly overview - exhaust manifold (2.0-liter engine shown)
- Exhaust manifold
- Screws, M8 x 27
- Seals - replace
- Seal - replace
- Studs - replace
- Holder for heat shield on exhaust manifold flange
- Screw, M8 x 20
- Collar nuts, M8 - replace
- Screw, M6 x 12 (heat shield to holder)
- Remove control valves with vacuum lines.
- Control valve for wastegate
- Wastegate control valve
- Control valve for coolant pump and additional coolant pump
- Control valve for sports exhaust system (if installed)

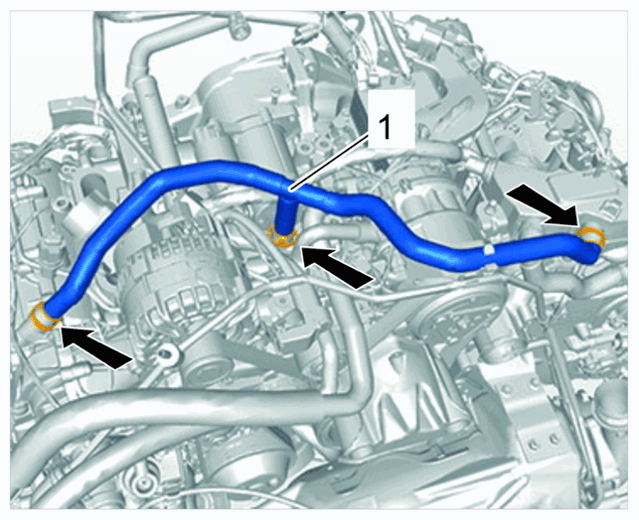

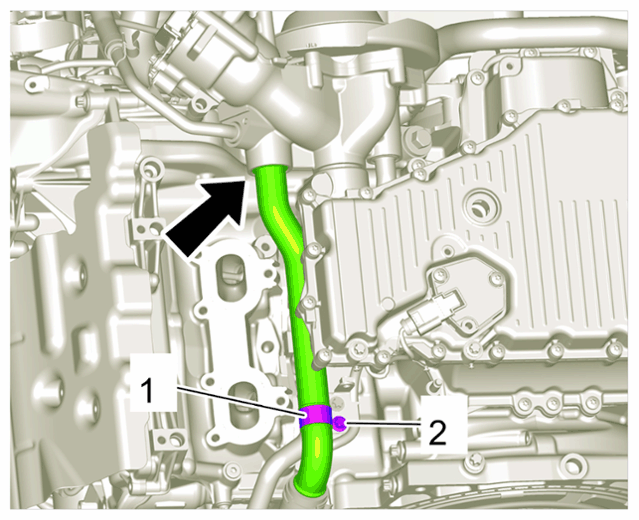

- Remove crankcase vent line -1-
.
- 21.1 Disconnect vent line at the cylinder head 1-2, oil filler pipe and oil separator connection points -arrows- .
Positive crankcase ventilation line

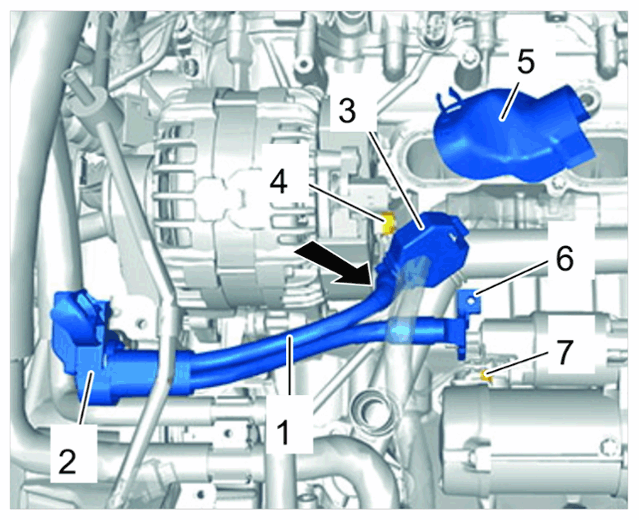

- Remove B+ wiring harness -1-
.
- 22.1 Pull off protection cap -3- on the generator and unscrew collar nut -4- .
- 22.2 Pull off protection cap -5- on the starter. Unscrew hexagon nut -6- on B+ line for the starter.
- 22.3 Unscrew M6 collar nut -7- for terminal 50 on the solenoid switch for the starter.
- 22.4 Unclip engine wire harness -arrow- and remove wiring harness with B+ socket -2- and protection cap on the starter.
B+ wiring harness
Information
- Photos taken with a digital camera are helpful for dealing with complicated line routing (engine wire harness).
- For details, see 975219 "Removing and installing engine wire harness".
- Disconnect various connectors on the engine wire harness.
> WM, 975219 REMOVING AND INSTALLING WIRE HARNESS FOR ENGINE
- 23.1 Pull off the following cable plugs:
- Camshaft control (4x)
- Valve lift adjustment (4x)
- Hall sender (4x)
- Coolant temperature sensor
- Knock sensors (2x)
- Generator
- Oil pressure regulating valve
- Ignition coils (4x)
- Sensor for oil pressure and oil temperature (1x each)
- Oil level sensor
- Low-pressure sensor
- High-pressure sensor
- High-pressure pump
- Exhaust temperature sensor (cylinder bank 3-4)
- Additional coolant pump
- Coolant regulator
- Fuel injectors
- 23.2 Loosen ground cable for ignition coils and unscrew two screws.
- 23.3 Unscrew screws for cable duct.
- 23.4 Remove engine wire harness.
- 23.1 Pull off the following cable plugs:
- Remove bracket with deflection roller.

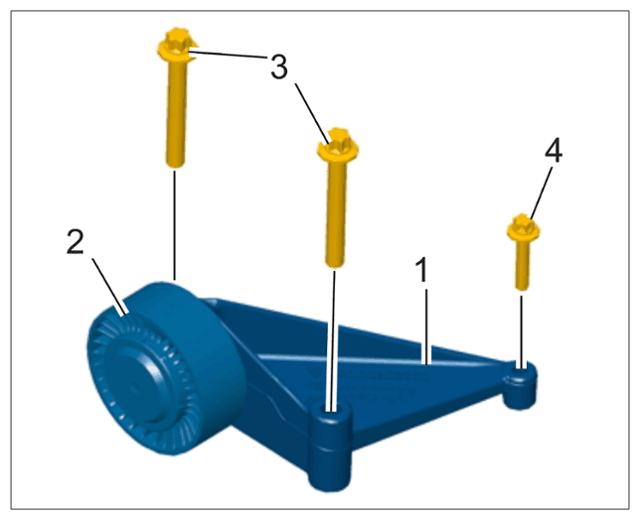

Overview of parts
- Deflection roller console
- Deflection roller
- M8 screws on unit carrier
- M6 screw on crankcase
- Remove generator.

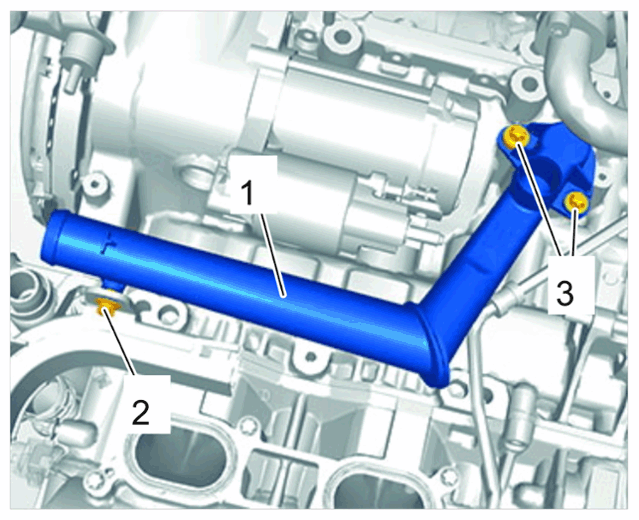

- Remove oil filler pipe -1-
.
- 26.1 Unscrew screw -2- at the rear and unscrew screws -3- on the crankcase flange.
- 26.2 Disconnect oil filler tube and replace O-ring.
Oil filler pipe
- Remove the starter.
> 276019 REMOVING AND INSTALLING STARTER - article on "Removing".

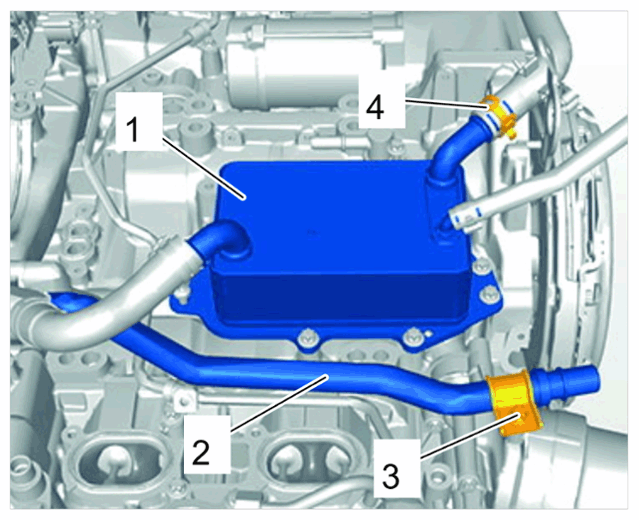

- Remove oil cooler -1-
and coolant pipe (return line for transmission) -2-
.
- 28.1 Unscrew screws on the oil cooler. Lift off oil cooler and replace seal.
- 28.2 Unscrew screw -3- , open spring band clamp -4- and disconnect coolant pipe from the distributor tube.
Oil cooler and coolant return pipe for transmission

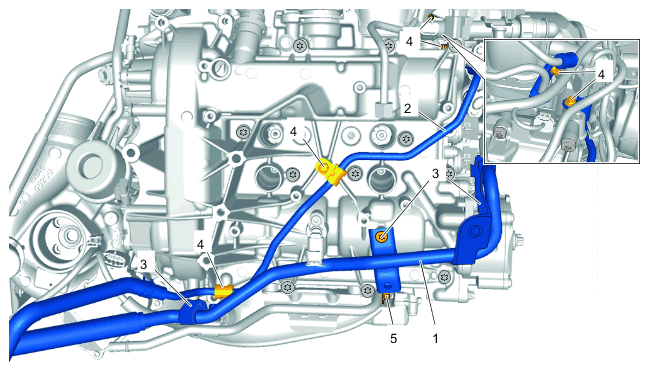

- Remove vacuum line -1-
and fuel line -2-
at low-pressure side on cylinder bank 3-4.
- 29.1 Unscrew screws -3- for vacuum line and remove line.
- 29.2 Unscrew screws -4- for fuel line and remove line.
- 29.3 Unscrew screw -5- for turbocharger oil line and pull line out of the oil pan.
Vacuum and fuel line (low-pressure), bank 3-4
- Remove the high-pressure pump.
> 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP - article on "Removing".

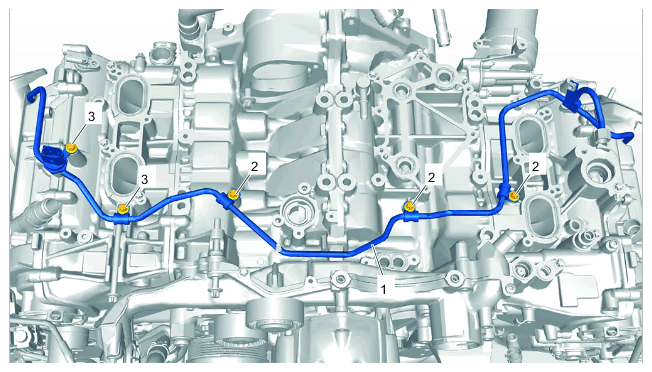

- Remove fuel line -1-
on high-pressure side.
- 31.1 Unscrew union nuts on the fuel collection pipes.
- 31.2 Unscrew screws -2 and 3- at the mounting points and remove line.
Fuel line (high-pressure side)

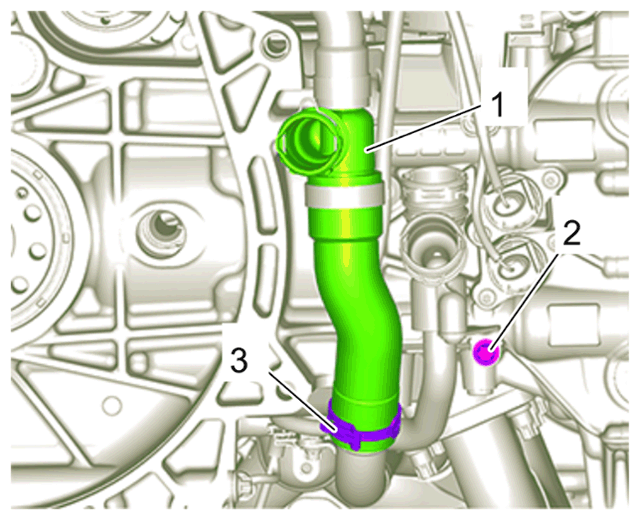

- Disconnect supply hose -1-
for heater.
- 32.1 Open spring band clamp -3- at the bottom and pull off hose.
Supply hose for heater

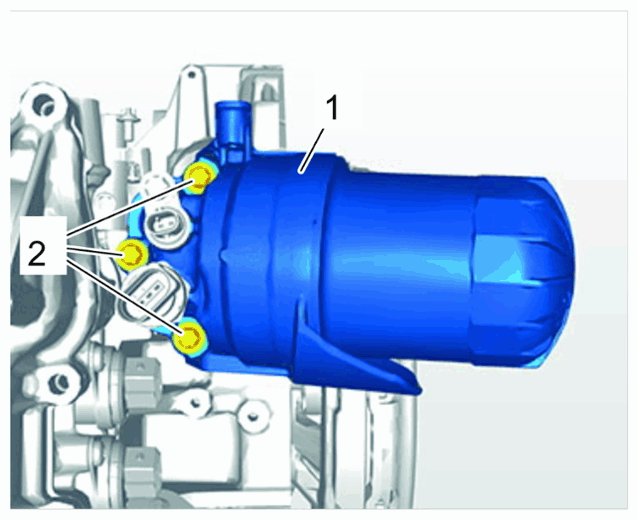

- Remove oil filter housing -1-
.
- 33.1 Unscrew screws -2- and remove housing.
Oil-filter housing

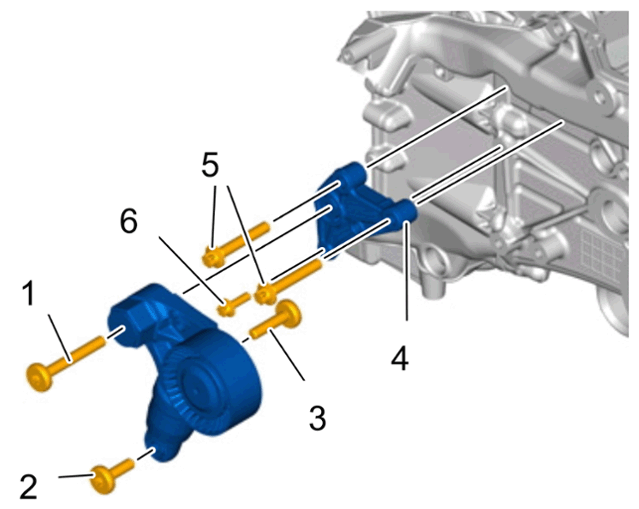

- Remove belt tensioner and bracket -4-
.
> 137319 REMOVING AND INSTALLING BELT TENSIONER - article on "Removing"
.
- 34.1 Unscrew M8 screws -1 and 2- and remove belt tensioner.
- 34.2 Unscrew two M8 screws -5- and one M6 screw -6- and remove the bracket.
Belt tensioner with bracket
- Disconnect coolant hose for directional-control valve (thermal management). Open spring band clamp and pull off the hose.
- Remove coolant distributor pipe.
- 36.1 Unscrew screws (M8 x 35 and M8 x 50) and remove coolant distributor pipe.
- 36.2 Replace moulded seals, check dowel sleeves for signs of damage and replace them if necessary.

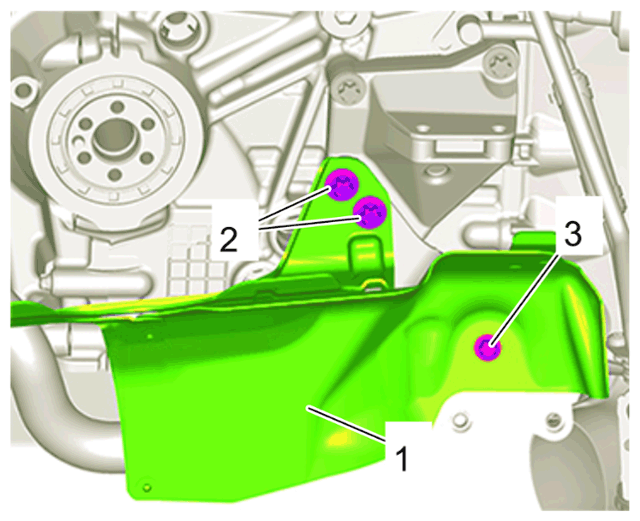

- Remove heat shield -1-
on turbocharger/exhaust manifold.
- 37.1 Heat shield: Unscrew M6 -1- and M8 screws -2- and remove heat shield.
Heat shield on turbocharger/exhaust manifold

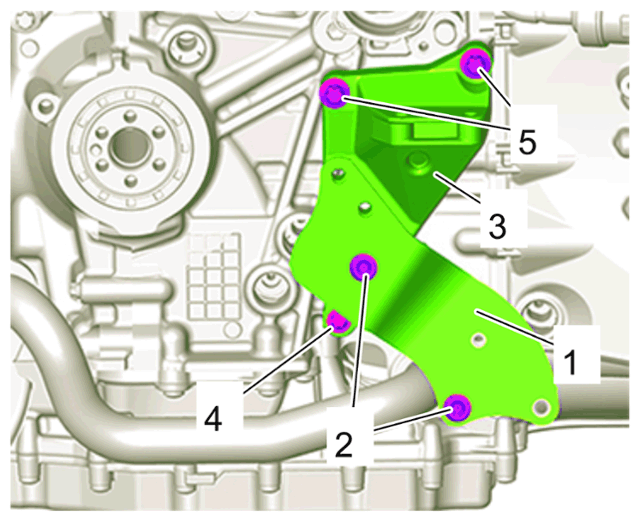

- Remove holder -1-
for turbocharger/exhaust manifold and bracket -3-
.
- 38.1 Unscrew M8 screws -2- and remove holder.
- 38.2 Unscrew M8 screws -5- and remove bracket.
Holder and bracket for turbocharger/exhaust manifold

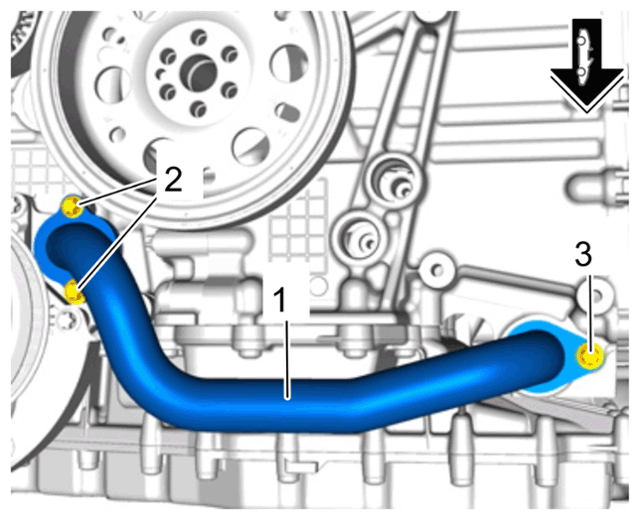

- Remove coolant pipe -1-
at the belt side.
- 39.1 Unscrew screws -2 and 3- .
- 39.2 Pull off coolant pipe and replace O-rings and seal.
Coolant pipe on coolant pump

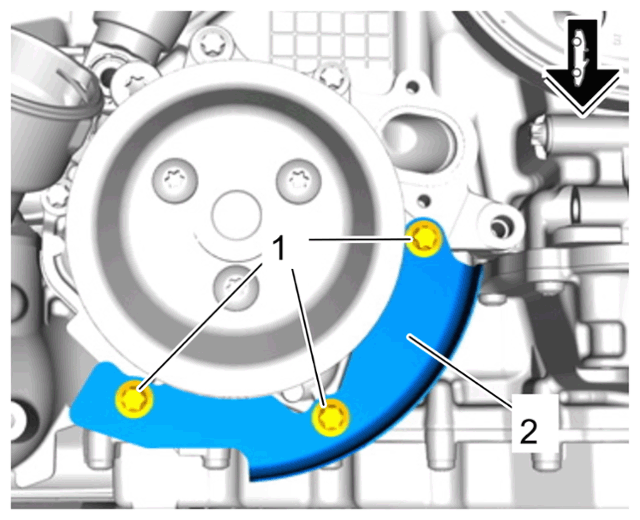

- Remove heat protection panel on coolant pump.
- 40.1 Unscrew screws -1- and remove heat protection panel -2- .
Heat protection panel

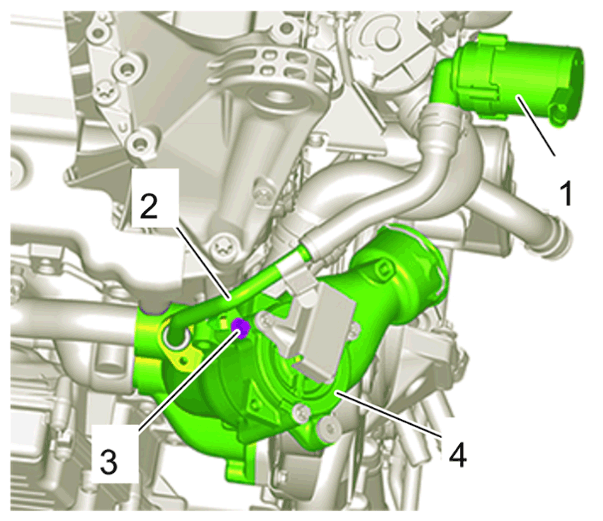

- Remove additional coolant pump -1-
with coolant pipe -2-
.
- 41.1 Unscrew screw -3- on coolant regulator housing -4- .
- 41.2 Pull off coolant pipe and remove together with pump.
- 41.3 Replace O-rings.
Removing additional coolant pump with coolant pipe

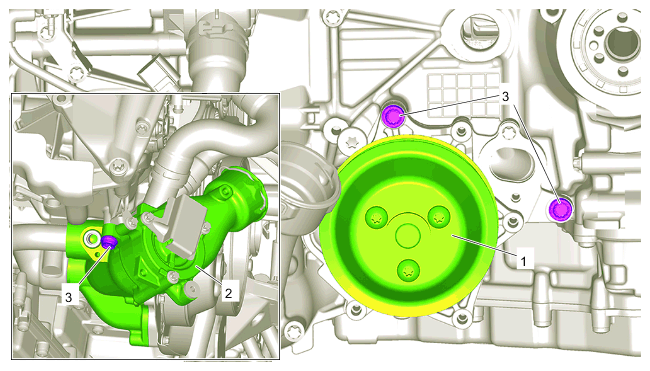

- Remove coolant pump -1-
with coolant regulator housing -2-
.
- 42.1 Unscrew three M8 screws -3- and remove components.
- 42.2 Replace O-rings on the housing.
Coolant pump with coolant regulator housing
- Remove ignition coils.
> 282020 REMOVING AND INSTALLING IGNITION COILS - article on "Removing".
- Remove two hall senders on each cylinder bank.
- 44.1 Unscrew M6 screws and pull off hall senders.
- Remove spark plugs.
> 287020 REMOVING AND INSTALLING SPARK PLUGS - article on "Removing".
- Remove fuel collection pipes.
> 243020 REMOVING AND INSTALLING FUEL COLLECTION PIPE - article on "Removing".
- Disconnect vacuum line for brake booster at cylinder bank 3 - 4.

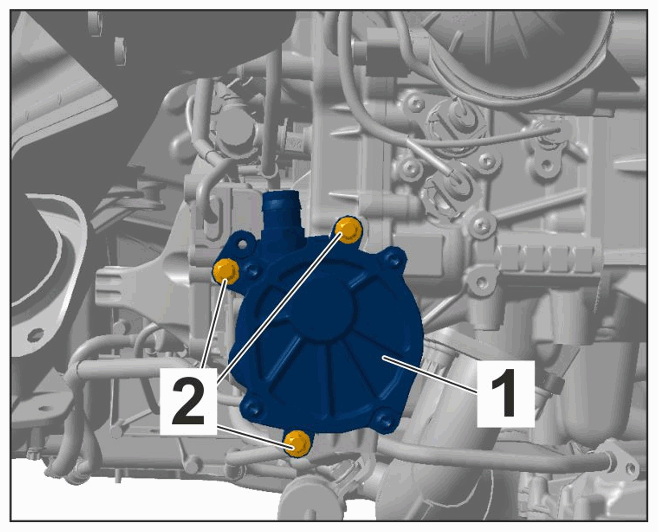

- Remove vacuum pump -1-
on cylinder head 3 - 4.
> 477619 REMOVING AND INSTALLING VACUUM PUMP - article on "Removing".
Mounting for vacuum pump
- Vacuum pump
- M6 screws
- Remove two hydraulic valves for valve lift switchover on each cylinder bank.
> 155519 REMOVING AND INSTALLING SOLENOID HYDRAULIC VALVE FOR VALVE LIFT ADJUSTMENT - article on "Removing".

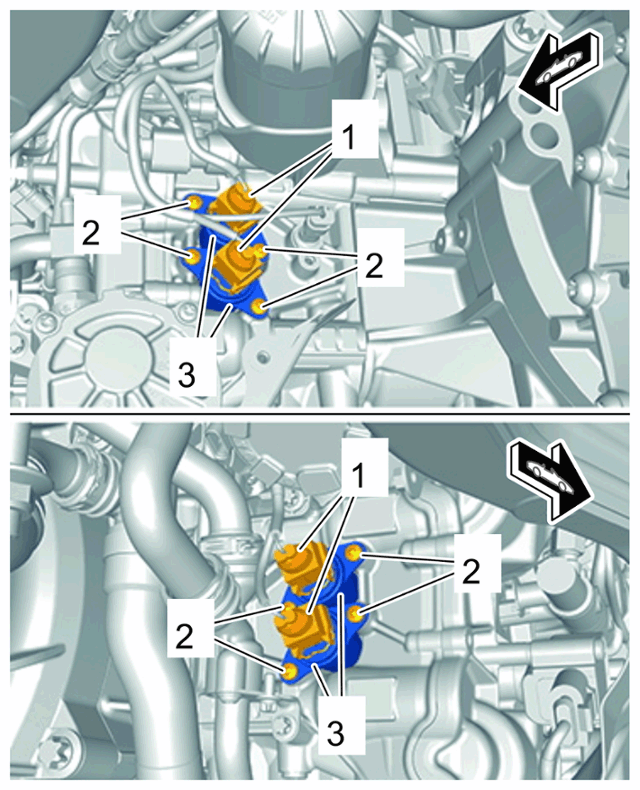

Solenoid hydraulic valve for valve lift adjustment
- Cable plugs
- Screws
- Hydraulic valves
- Remove coolant pipe (on oil pan side).
Coolant pipe (on oil pan side)
