Component Overviews - Engine

WARNING: This page is about a different variant/trim than selected.
  1. Overview of components on belt side:

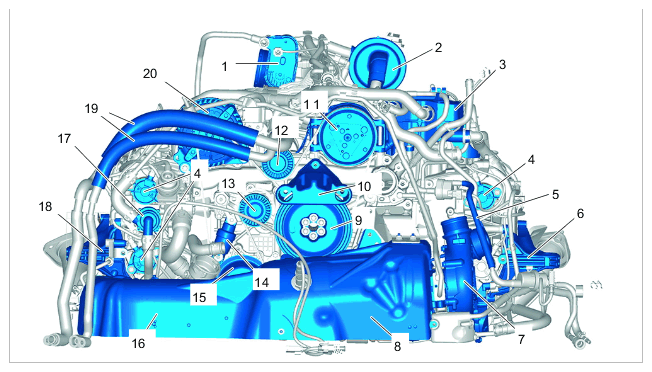

Fig 1: Overview Of Belt Side Components Location
G14944395Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of components on belt side

  1. Throttle housing
  2. Engine wire harness connection with rubber sleeve
  3. Oil separator
  4. Camshaft controller actuator
  5. Tank vent line
  6. Engine mount bracket, bank 1 - 2
  7. Turbocharger
  8. Heat protection on catalytic converter
  9. Crankshaft vibration damper
  10. Engine support
  11. Air-conditioning compressor
  12. Deflection roller
  13. Tensioning roller
  14. Belt tensioner
  15. Coolant pump pulley
  16. Heat protection on exhaust pipe
  17. Additional coolant pump
  18. Engine mount bracket, bank 3 - 4
  19. Air-conditioning lines
  20. Generator

Overview of components on flywheel side:

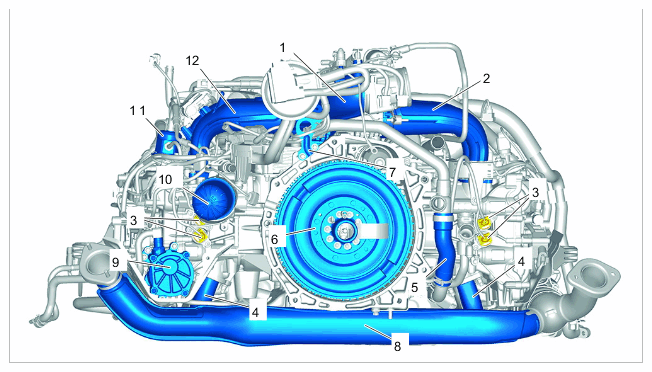

Fig 2: Overview Of Flywheel Side Components Location
G14944396Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of components on flywheel side

  1. Centre intake-air distributor
  2. Intake-air distributor 1 - 2
  3. Solenoid hydraulic valve for valve lift adjustment
  4. Exhaust manifold
  5. Coolant collection unit
  6. Flywheel
  7. Transport eyebolt
  8. Exhaust pipe
  9. Vacuum pump
  10. Oil filter
  11. High-pressure pump
  12. Intake-air distributor 3 - 4

Overview of components on cylinder bank 1 - 2:

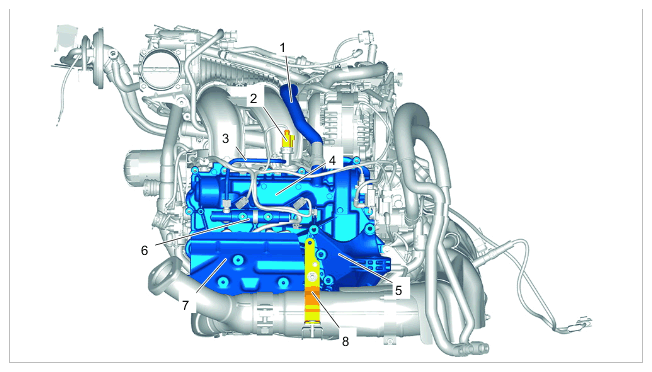

Fig 3: Overview Of Cylinder Bank 1-2 Components Location
G14944397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of components on cylinder bank 1-2

  1. Positive crankcase ventilation line, bank 1 - 2
  2. High-pressure sensor (fuel system)
  3. Fuel connection line (high-pressure side)
  4. Cylinder head cover on bank 1 - 2
  5. Engine mount bracket, bank 1 - 2
  6. Fuel collection pipe
  7. Heat shield
  8. Exhaust pipe holder

Overview of components on cylinder bank 3 - 4:

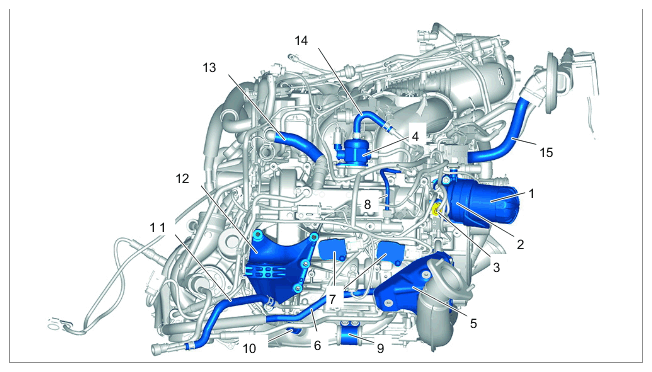

Fig 4: Overview Of Cylinder Bank 3-4 Components Location
G14944398Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of components on cylinder bank 3-4

  1. Oil filter
  2. Oil filter console
  3. Oil pressure sensor
  4. High-pressure pump
  5. Heat protection on vacuum pump
  6. Vacuum line
  7. Ignition coils
  8. Fuel connection line (high-pressure side)
  9. Fastening part for exhaust pipe
  10. Oxygen sensor upstream of catalytic converter
  11. Fuel line (low-pressure side)
  12. Engine mount bracket, bank 3 - 4
  13. Positive crankcase ventilation line, bank 3 - 4
  14. Fuel hose for high-pressure pump (low-pressure pump)
  15. Engine wire harness

Overview of components on top of engine:

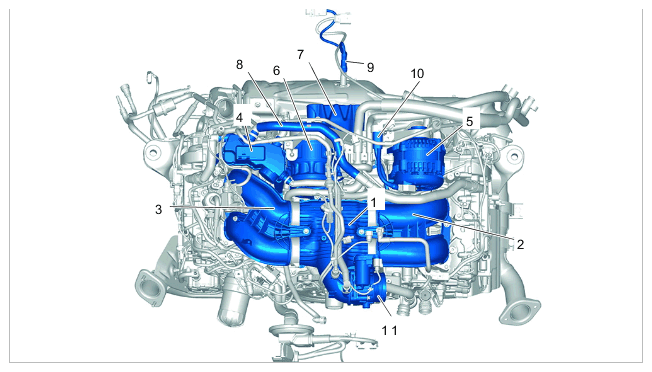

Fig 5: Overview Of Engine Top Components Location
G14944399Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of components on top of engine:

  1. Centre intake-air distributor
  2. Intake-air distributor for cylinder bank 1 - 2
  3. Intake-air distributor for cylinder bank 3 - 4
  4. Oil separator
  5. Generator
  6. Air-conditioning compressor
  7. Console
  8. Positive crankcase ventilation line
  9. Oxygen sensor downstream of catalytic converter
  10. B+ wiring harness
  11. Throttle housing

Overview of components on bottom of engine:

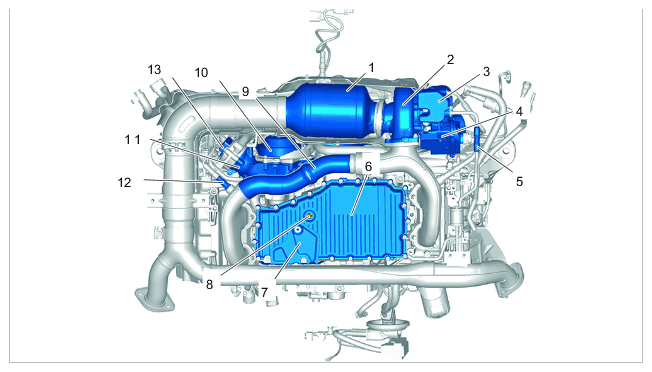

Fig 6: Overview Of Engine Bottom Components Location
G14944400Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of components on bottom of engine:

  1. Catalytic converter
  2. Turbocharger
  3. Oil tank for turbocharger
  4. Electronic adjuster (for VTG turbochargers)
  5. Oil return line
  6. Oil pan
  7. Heat shield
  8. Drain plug
  9. Connecting tube on exhaust manifold (fixed)
  10. Coolant pump
  11. Coolant regulator housing
  12. Oxygen sensor upstream of catalytic converter
  13. Coolant regulator
