WM, 1001IN - Tools For Removing/Installing Units And Working On Assembly Support: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

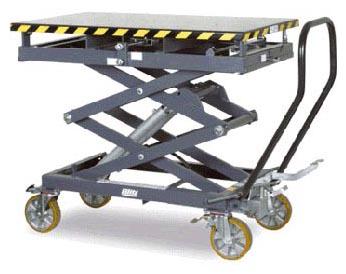

Master Gear unit elevating platform	Vehicle-specific workshop equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

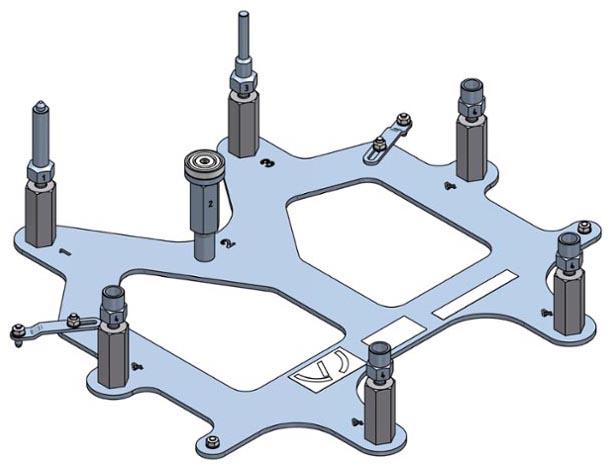

Assembly fixture - Boxster	Vehicle-specific workshop equipment	> VAS 6832/6	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

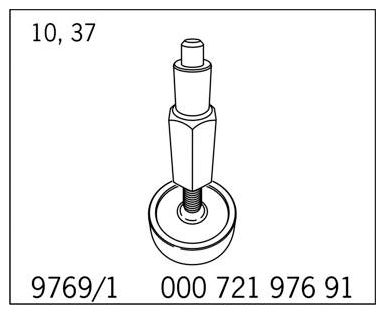

Support	Special tool	> 9769/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

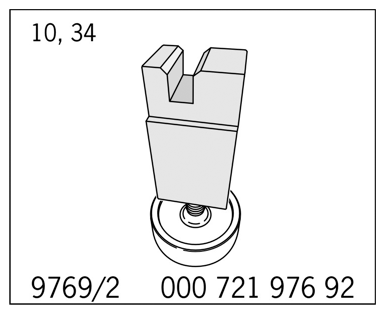

Support	Special tool	> 9769/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

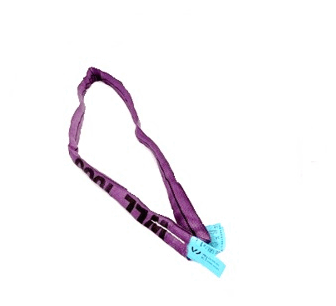

Round sling	Vehicle-specific workshop equipment	> VAS 501 015	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
strapping belts	Special tool	> 9454	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

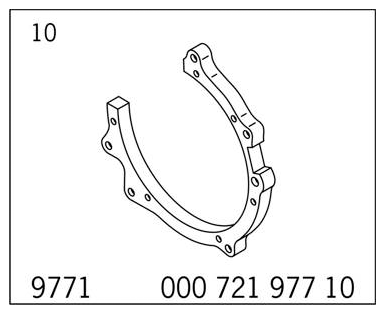

engine adapter	Special tool	> 9771	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

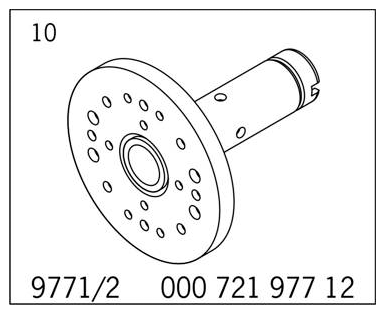

Engine support	Special tool	> 9771/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

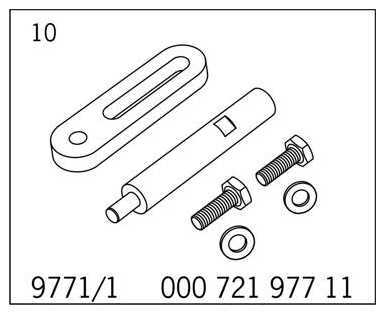

Mounting set	Special tool	> 9771/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

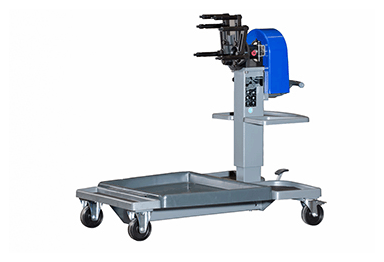

Engine and Gearbox Support	General workshop equipment	> VAS 6095A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
mounting parts	Special tool	> 9590	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
