WM, 100119 - Removing And Installing Engine: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

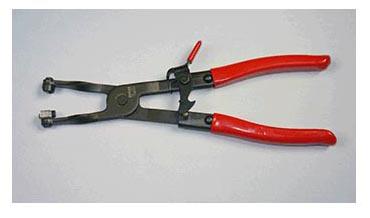

Spring Band Clamp Pliers	Vehicle-specific workshop equipment	> VAS 6890	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Socket-wrench insert	Special tool	> P300	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

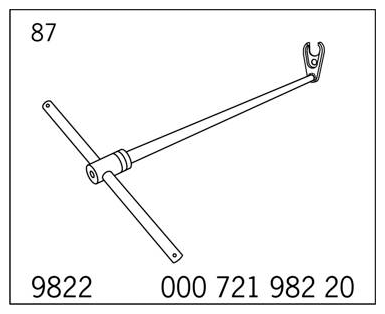

assembly tool	Special tool	> 9822	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

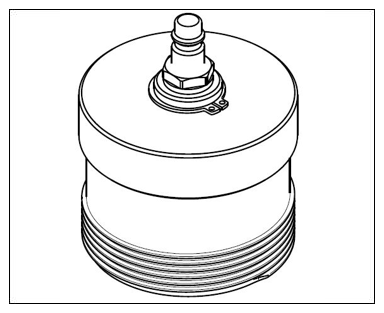

filling adapter	Special tool	> 9696/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

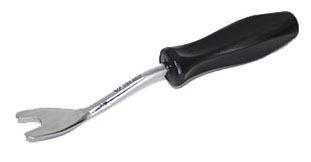

Disassembly tool	Vehicle-specific workshop equipment	> VAS 6933	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

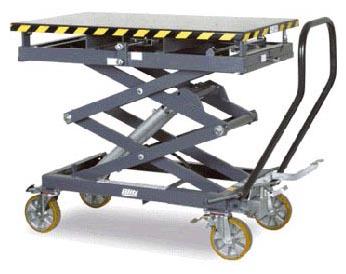

Master Gear unit elevating platform	Vehicle-specific workshop equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

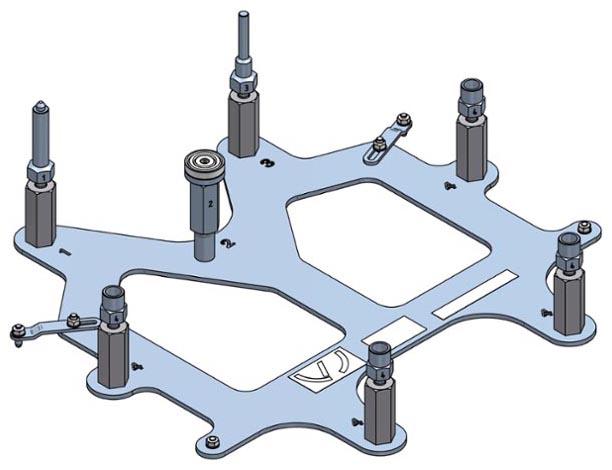

Assembly fixture - Boxster	Vehicle-specific workshop equipment	> VAS 6832/6	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Strapping belts	Special tool	> 9454	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
