Positive Crankcase Ventilation Lines

WARNING: This page is about a different variant/trim than selected.

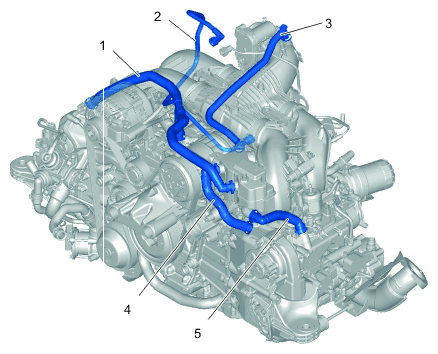

Fig 1: Positive Crankcase Ventilation Components Location
G14944921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of positive crankcase ventilation

  1. Oil separator vent line - cylinder head 1-2
  2. Vent line for charge-air cooler
  3. Oil separator vent line - intake-air distributor
  4. Oil separator vent line - cylinder head 3-4
  5. Connection on cylinder head cover, bank 3-4
