Low-Temperature System For Charge-Air Cooling
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

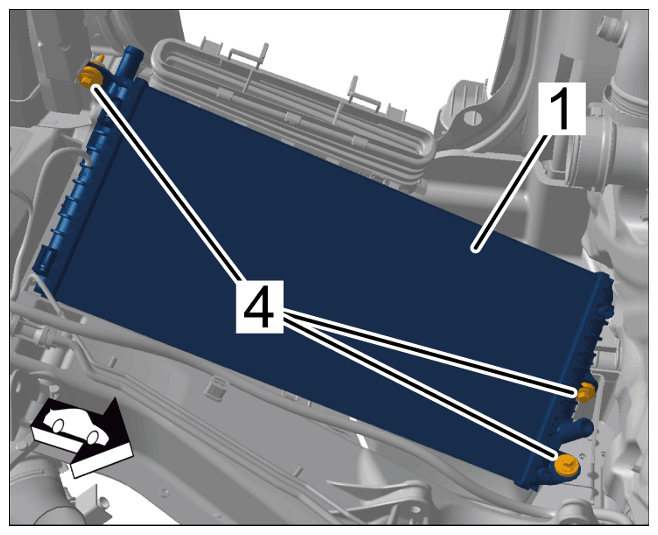

Low-temperature cooler
- Low-temperature cooler
- Screws for low-temperature cooler > Tightening torque 10 Nm (7.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

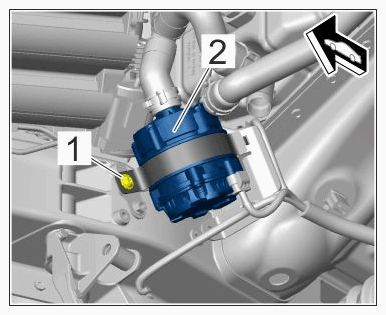

Additional coolant pump
- Screw for additional coolant pump > Tightening torque 8 Nm (6 ftlb.)
- Additional coolant pump
