Assembly Overview - Cooler, Coolant Pipes, Reservoir, Additional Coolant Pump, Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.

Overview of cooler:

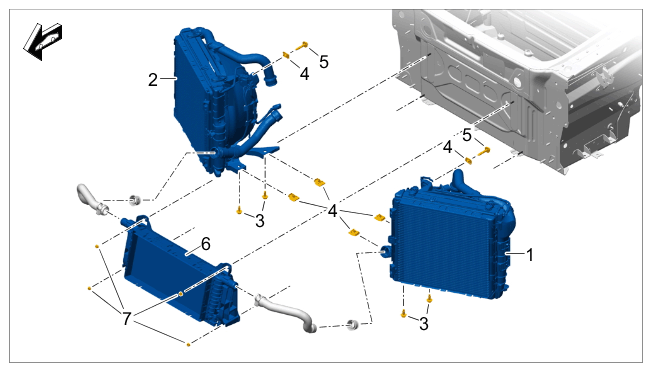

Fig 1: Cooler Components Location
G14944953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooler

  1. Left cooler (with condenser)
  2. Right cooler (with condenser)
  3. >Tightening torque 23 Nm (17 ftlb.)
  4. Speed nut
  5. >Tightening torque 23 Nm (17 ftlb.)
  6. Middle cooler
  7. Collar nut, M6 > Tightening torque 10 Nm (7.5 ftlb.)
Location Description Type Basic value Tolerance
Holder for middle cooler Screw, M6 x 16 and M6 nut Tightening torque 10 Nm (7.5 ftlb.)

Overview of electric fan with fan frame:

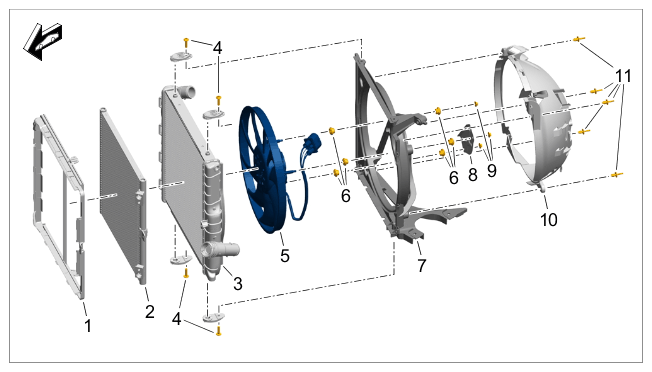

Fig 2: Electric Fan With Frame Components Location
G14944954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric fan with frame

  1. Condenser frame
  2. Condenser
  3. Cooler
  4. >Tightening torque 10 Nm (7.5 ftlb.)
  5. Electric fan
  6. Clip holder
  7. Electric fan frame
  8. Cover
  9. >Tightening torque 10 Nm (7.5 ftlb.)
  10. Air guide
  11. Retaining clip

Coolant pipes in tunnel:

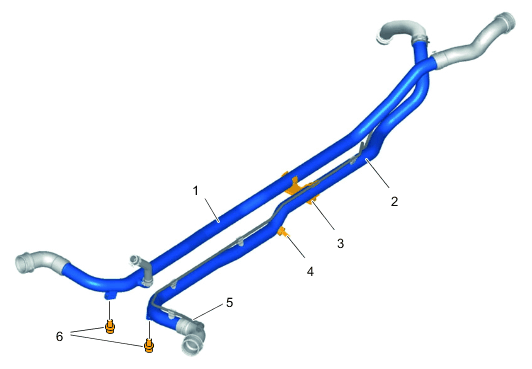

Fig 3: Lower Coolant Pipe In Tunnel Components Location
G14944955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower coolant pipe in tunnel

  1. Centre coolant pipe, right
  2. Centre coolant pipe, left
  3. Centre holder
  4. Coolant temperature sensor
  5. Vent line
  6. Fastening screws, front > Tightening torque 10 Nm (7.5 ftlb.)

Coolant reservoir:

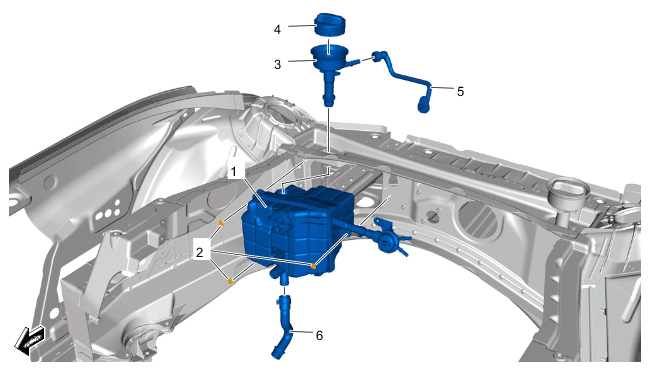

Fig 4: Coolant Reservoir Components Location
G14944956Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant reservoir

  1. Coolant reservoir
  2. Fastening nut for coolant reservoir > Tightening torque 10 Nm (7.5 ftlb.)
  3. Filler neck
  4. Coolant reservoir cap
  5. Vent line
  6. Filler hose

Coolant pipes on front axle:

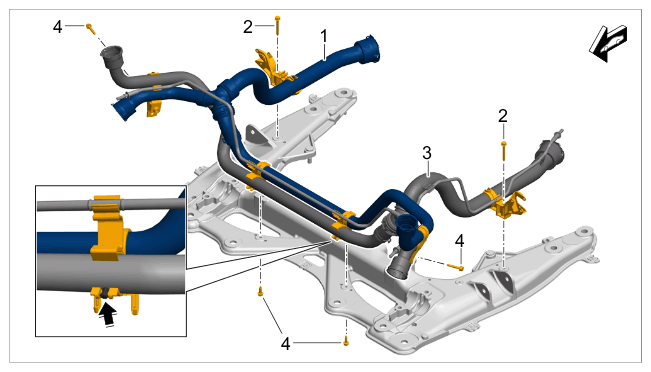

Fig 5: Coolant Pipes On Front Axle Components Location
G14944957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pipes on front axle

  1. Coolant pipe, front right
  2. Fastening screw securing holder for coolant pipes on rear of front-axle carrier> Tightening torque 10 Nm (7.5 ftlb.)
  3. Coolant pipe, front left
  4. Fastening screw for coolant pipe holder, front> Tightening torque 10 Nm (7.5 ftlb.)

arrow  Position of bolts with respect to holder

Location Description Type Basic value Tolerance
Holder for coolant pipe (radiator connection) Screw, M6 x 35 Tightening torque 10 Nm (7.5 ftlb.)
Vacuum unit to disc valve holder (TMM) M4 x 12 Tightening torque 3 Nm (2 ftlb.)
Disc valve holder to body (engine compartment) Collar nut, M6 Tightening torque 10 Nm (7.5 ftlb.)
Coolant reservoir to body Screw, M6 x 25 Tightening torque 10 Nm (7.5 ftlb.)
Temperature sensor in coolant pipe M14 x 1.5 - replace seal Tightening torque 35 Nm (26 ftlb.)

Additional coolant pump:

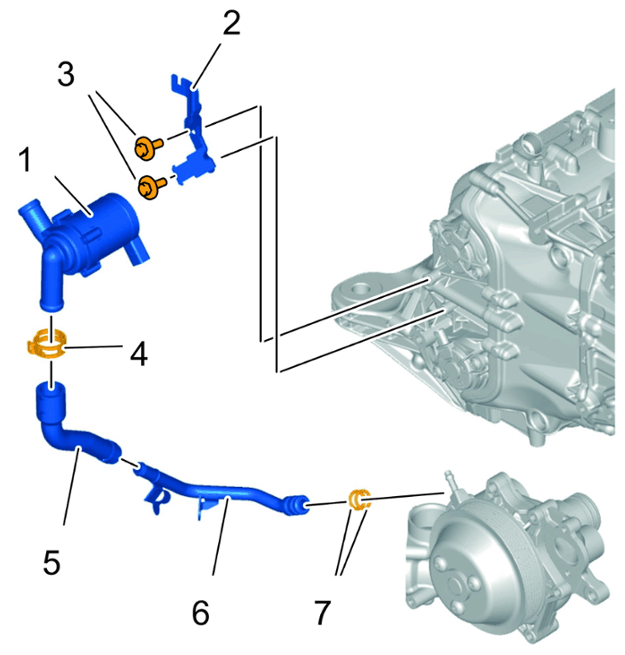

Fig 6: Coolant Pump For Turbocharger Components Location
G14944958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump for turbocharger

  1. Additional coolant pump for turbocharger
  2. Additional coolant pump holder
  3. Screw, M6 > Tightening torque 13 Nm (9.5 ftlb.)
  4. Spring band clamp
  5. Supply hose
  6. Feed line
  7. O-rings - replace

Transmission return line:

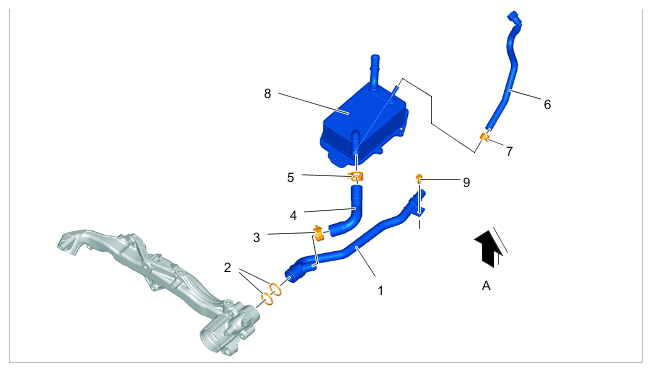

Fig 7: Transmission Return Line Components Location
G14944959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission return line

  1. Transmission return line
  2. O-ring, 27.00 x 3.00
  3. Spring band clamp, B27 x 12
  4. Oil heat exchanger return hose
  5. Spring band clamp, B25 x 12
  6. Breather hose
  7. Spring band clamp, B14 x 12
  8. Oil heat exchanger
  9. Screw for transmission return line holder, M6 x 12 > Tightening torque 10 Nm (7.5 ftlb.)
