Disassembling Cylinder Head: Notes
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.
Recommended tools: > VAS 5161A - Removal and Installation Device for Valve Keys and > VAS 5161A/33 - Supplement Set for Valve Key Assembly
Component overview of cylinder head:

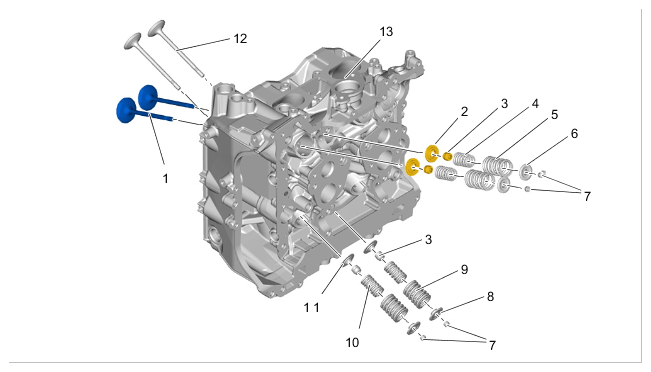

Overview of individual cylinder head parts
- Outlet valve
- Lower valve-spring plate (outlet)
- Valve-stem seal
- Inner valve spring
- Outer valve spring (outlet)
- Upper valve-spring plate (outlet)
- Valve keys
- Upper valve-spring plate (intake)
- Outer valve spring (intake)
- Inner valve spring (intake)
- Upper valve-spring plate (intake)
- Intake valves
- Cylinder head

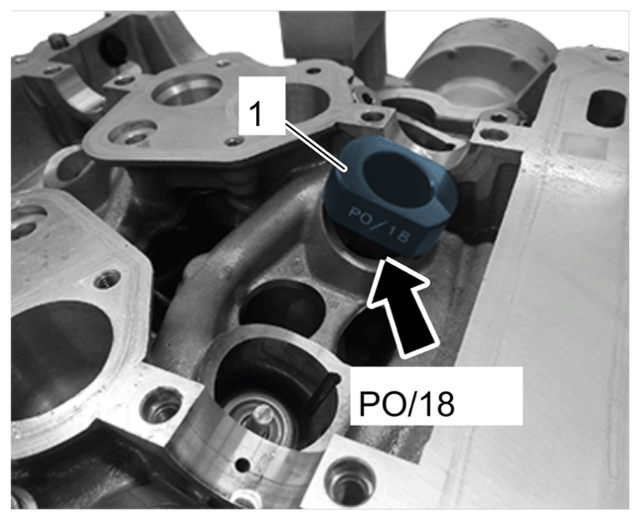

- Fit guide sleeve PO/18 -1-
for the intake and outlet side into the valve slot.
Guide sleeve for valve key disassembly and assembly
- Loosen valve disc from the valve keys using the impact mandrel PO/3
.
- 2.1 Tap the valve disc using a plastic hammer and the impact mandrel.
Information
Reusable inner parts of the cylinder head must always be cleaned thoroughly and assigned to their original installation location.
- With cylinder head removed:
- 3.1 > VAS 6419 - Cylinder head tensioning device must be fitted on > VAS 6095A - Engine and Gearbox Support .

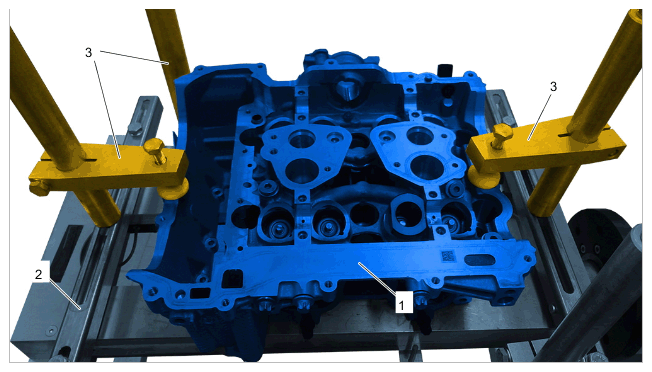

- 3.2 Secure cylinder head -1- using supports -3- to > VAS 6419 - Cylinder head tensioning device-2- .
- 3.3 > VAS 6419 - Cylinder head tensioning device must now be connected to compressed air.
- 3.4 Push air cushion with the lever under the relevant combustion chamber.
- 3.5 Allow as much compressed air as required to flow into the air cushion until it is touching the valve discs.
Cylinder head on cylinder head tensioning device VAS 6419
- Fit valve key disassembly tools from > VAS 5161A - Removal and Installation Device for Valve Keys
on the cylinder head.
- 4.1 Screw engaging lock into the appropriate threaded bore.
- 4.2 Check that the guide bush -4- is fitted fully.

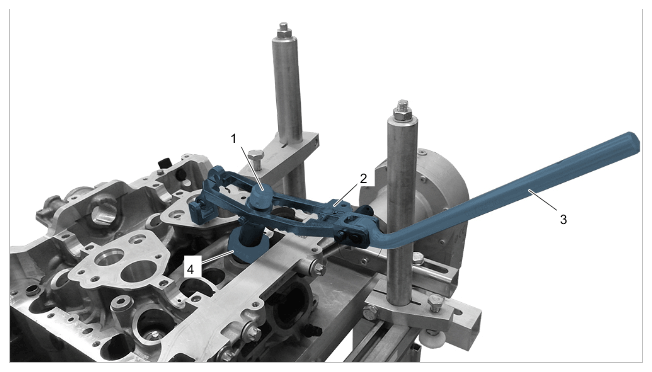

- 4.3 Fit assembly cartridge -1- into the guide bush. Position tips of the assembly cartridge at the valve key gaps.
- 4.4 Engage pressure fork -2- with lever -3- at a suitable position on the engaging lock and support it on the assembly cartridge.
Valve key disassembly and assembly tool
Information
- The flexible rotating head of the assembly cartridge must be positioned almost on the assembly cartridge.
- If this is not the case, the valve key mounting will not be positioned over the valve stem and it will not be possible to fit the valve keys.
- Remove valve keys using pressure fork VAS 5161/2, engaging lock VAS 5161/5
and assembly cartridge AS VAS 5161/8
.
- 5.1 Press valve springs together by pressing the pressure forks.

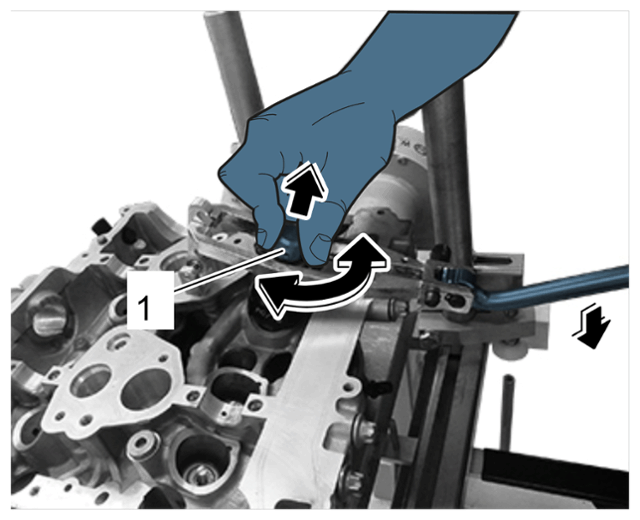

- 5.2 Loosen valve keys from the valve stem by turning and pressing the rotary head -1- on the assembly cartridge.
- 5.3 Pull rotary head up and slowly guide pressure fork upwards. This should secure the valve keys in the assembly cartridge.
Removing/fitting valve keys
- If the valve keys are not in the cartridge, repeat Step 6
.
- 6.1 If only one valve key is in the cartridge, use universal pressure piece PO/0 and PO/02
from > VAS 5161A/33 - Supplement Set for Valve Key Assembly
to press the valve disc downwards and remove the valve key using a bar magnet.
Proceed as described for pressure fork in Step 6!
Valve key tool for removing one valve key

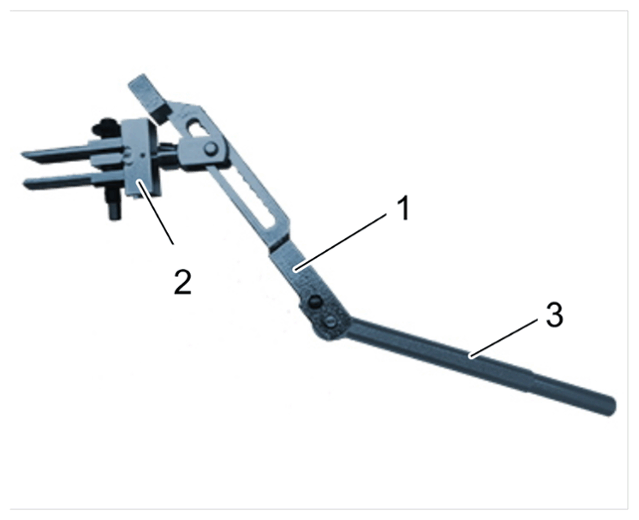

- Pressure fork
- Universal pressure piece
- Press lever
- 6.1 If only one valve key is in the cartridge, use universal pressure piece PO/0 and PO/02
from > VAS 5161A/33 - Supplement Set for Valve Key Assembly
to press the valve disc downwards and remove the valve key using a bar magnet.
- Remove valve springs and upper valve-spring plate using a bar magnet.
- 7.1 Always assign valve springs to the correct valve slot!

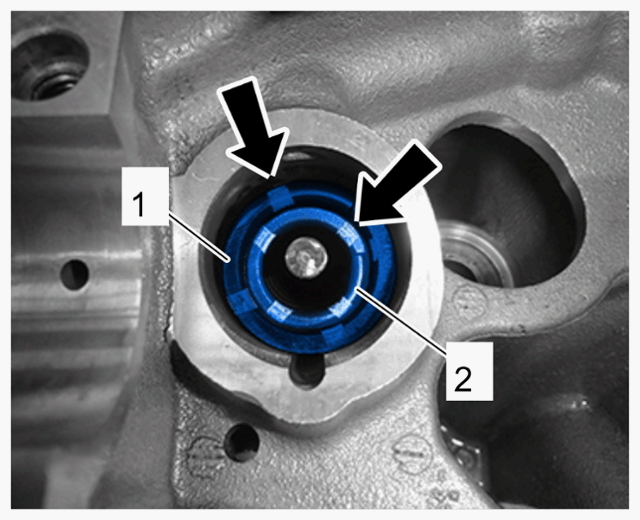

- 7.2 Markings -arrows- on the valve springs must be facing the observer!
Valve spring markings
- Outer valve spring
- Inner valve spring
Arrows Markings
- Replace valve-stem seals.
