Installing Solenoid Hydraulic Valve For Valve Lift Adjustment

NOTIFICATION

Ingress of dirt

• Danger of material damage due to blocked oil bores/oil ducts
  • → Ensure absolute cleanliness when working on the engine.
  • → Lay removed engine parts on a clean surface and cover them.
  • → Use a cover or PE sheet on the engine assembly support to prevent dirt from getting into the engine during assembly.

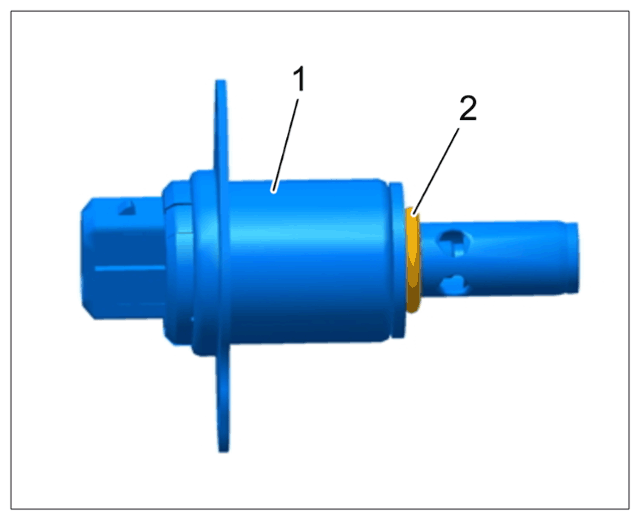

1. Replace O-ring -2-  and grease with Kluber Syntheso Glep.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid hydraulic valve

2. Install solenoid hydraulic valve for valve lift adjustment.

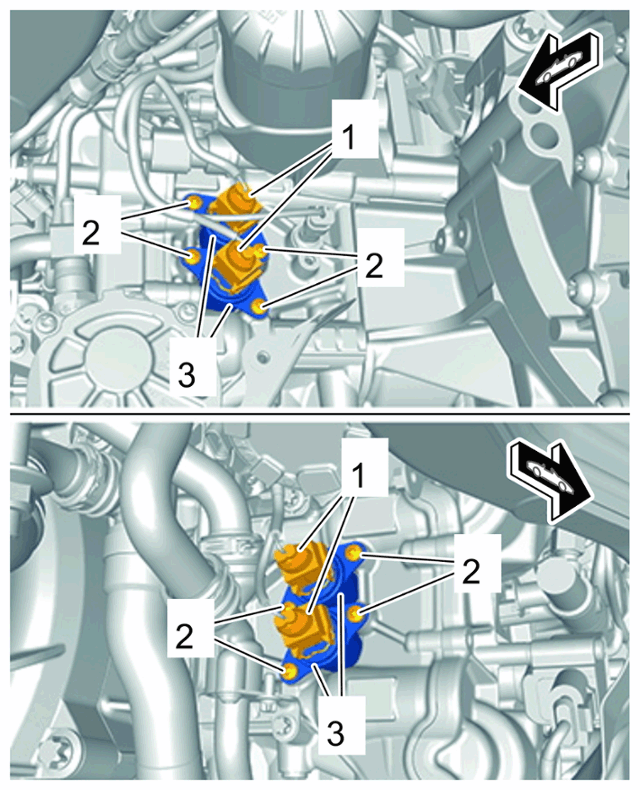

   1. 2.1 Fit solenoid hydraulic valve -3-  into the cylinder head.
   2. 2.2 Fit fastening screws -2-  for the relevant solenoid hydraulic valve -3-  and tighten to > Tightening torque 8 Nm (6 ftlb.)  .
   3. 2.3 Connect electric plug connections -1-  until the locks lock securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid hydraulic valve for valve lift adjustment

3. Check engine-oil level.

   > 170101 CHECKING ENGINE-OIL LEVEL
