Removing Chain Tensioner For Cylinder Bank 1 And 2

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew chain tensioner for cylinder bank 1 and 2 -1-  .
  2. Catch emerging oil using suitable aids.

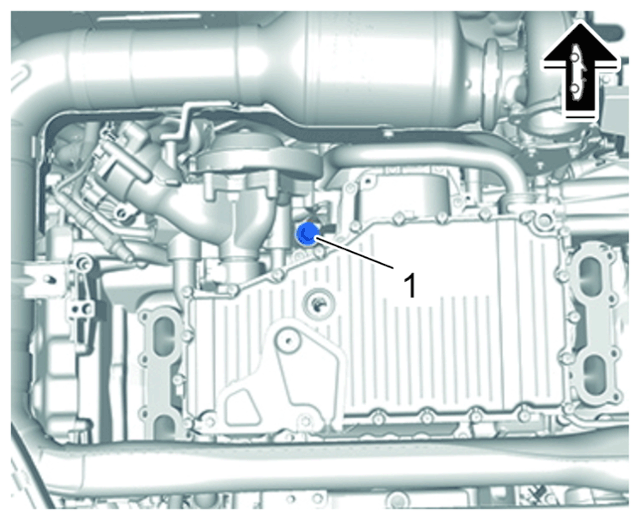

    G14944706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner for cylinder bank 1 and 2
