Installing Chain TENSIONER

WARNING: This page is about a different variant/trim than selected.

Clean sealing surfaces.
Information

The O-ring -2- secures the sealing ring -3- on the chain tensioner -1- . The O-ring -2- must therefore be fitted after the sealing ring -3- on the chain tensioner -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

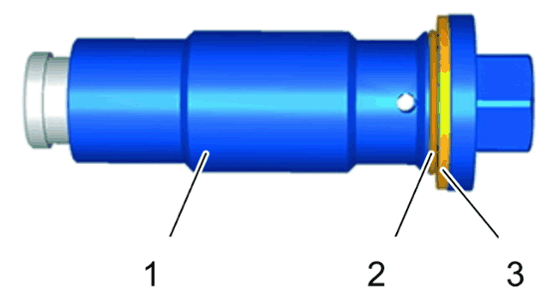

Sealing ring and O-ring on chain tensioner
Replace O-ring -2- and sealing ring -3- on chain tensioner -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner with O-ring and sealing ring
Further installation is performed in reverse order to removal.
Chain tensioner > Tightening torque 80 Nm (59 ftlb.) .
