Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install vibration damper using new screws.
> 137519 REMOVING AND INSTALLING VIBRATION DAMPER (2.0 L) .

> 137519 REMOVING AND INSTALLING VIBRATION DAMPER (2.5 L) .

Only for cylinders 3-4:

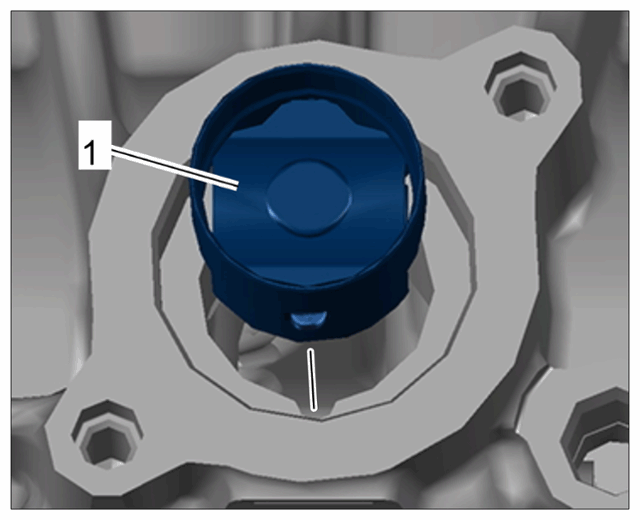

2.1 Coat tappets for high-pressure pump -1- with oil and fit them at the correct installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tappets for high-pressure pump

2.2 Install the high-pressure pump.
> 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP .

Install cylinder head cover.
> 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER .
Install the engine.
> 100119 REMOVING AND INSTALLING ENGINE .
