Component Markings And Distinguishing Features

Information

• The camshaft markings are on the dihedron.
• The data matrix code markings must be facing you during removal and installation!

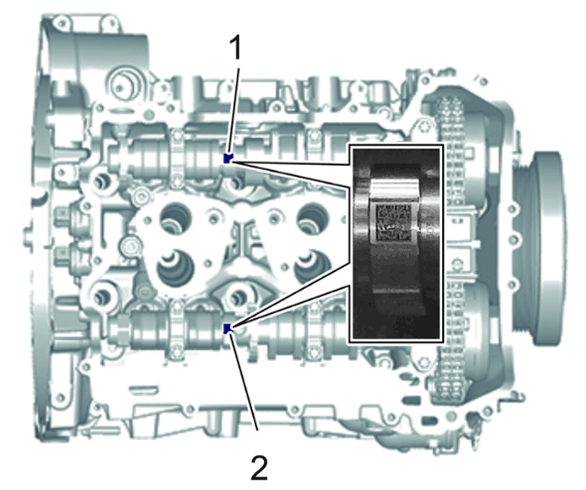

Markings: Data matrix code on the dihedron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Data matrix code on the camshafts

Camshafts:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

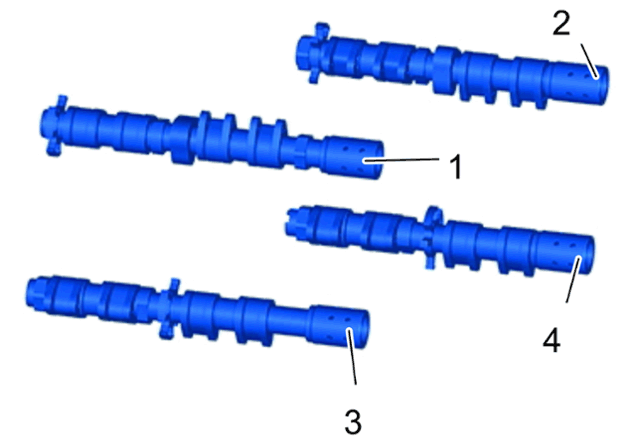

Camshafts

1. Intake, cylinder 1-2
2. Intake, cylinder 3-4
3. Outlet, cylinder 1-2
4. Outlet, cylinder 3-4

Camshaft mount:

• Bearing saddle:  Matching number for cylinder head, upper and lower part on the front (chain box side)
• Bearing cover:  Matching number for cylinder head and allocation to intake and outlet side of cylinder (e.g. A1 for outlet cylinder 1)

Camshaft actuator:

The actuators for intake and outlet camshafts are different.

The central screws are identical.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

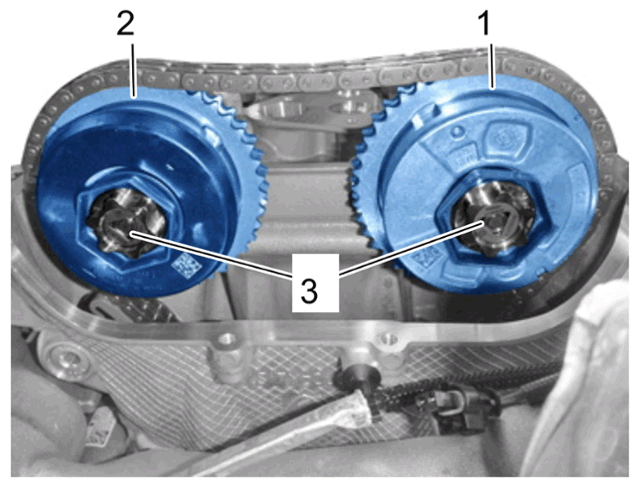

Installation overview of central screws for camshaft controllers

1. Actuator for intake camshaft (aluminium surface)
2. Actuator for outlet camshaft (black)
3. Central screws (central valves)
