Removing Engine Compartment Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

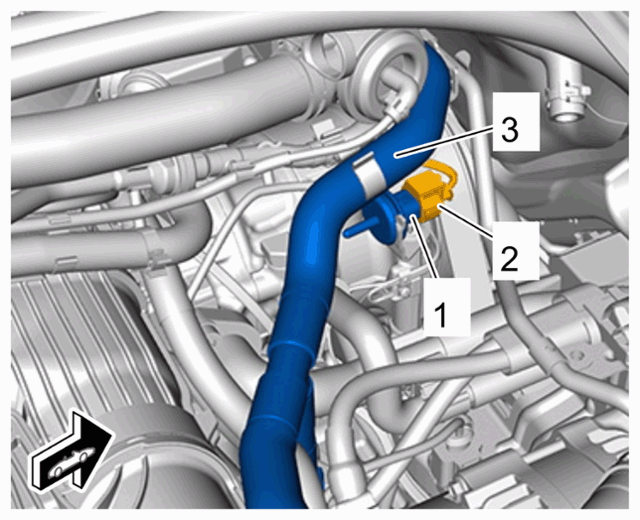

Press positive crankcase ventilation line -3 - up slightly until the engine compartment temperature sensor -1 - is accessible.
Lift engine compartment temperature sensor -1 - up out of the holder.
Release and disconnect electric plug connection -2 -.
Remove engine compartment temperature sensor -1 -.
