Removing Pulse Sender
WARNING: This page is about a different variant/trim than selected.

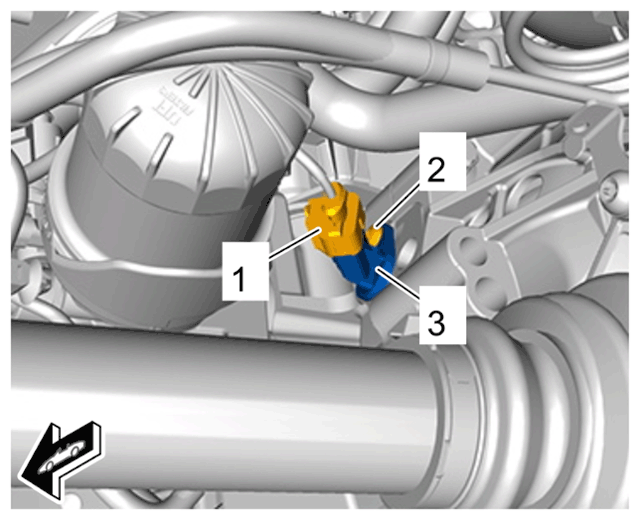

- Release and pull off cable plug -1
-.
- Unscrew fastening screw -2
- and remove pulse sender -3
-.
Tool recommendation: 1/4-inch ratchet with Torx insert T 40
