Installing Pulse Sender
WARNING: This page is about a different variant/trim than selected.

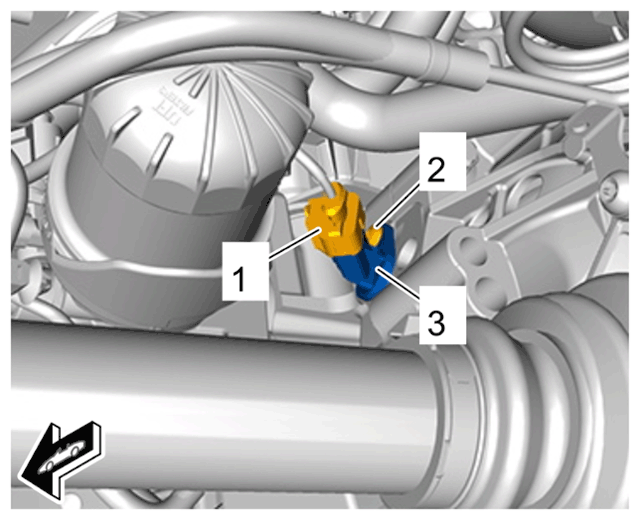

- Insert pulse sender -3
-. Screw in fastening screw -2
- and tighten using > V.A.G 1783 - Torque wrench, 2-10 Nm (1.5-7.5 ftlb.)
.
> Tightening torque 8 Nm (5.9 ftlb.)
- Insert cable plug -1
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
