Removing Knock Sensor
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove knock sensor.

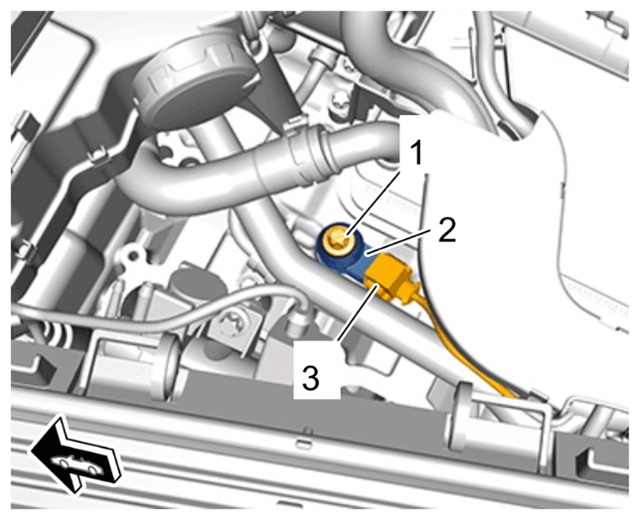

- 1.1 Unscrew and remove fastening screw -1
-.
- 1.2 Disconnect electric plug connection -3
-.
- 1.3 Remove knock sensor -2
-.
