Removing Ignition Coils

WARNING: This page is about a different variant/trim than selected.

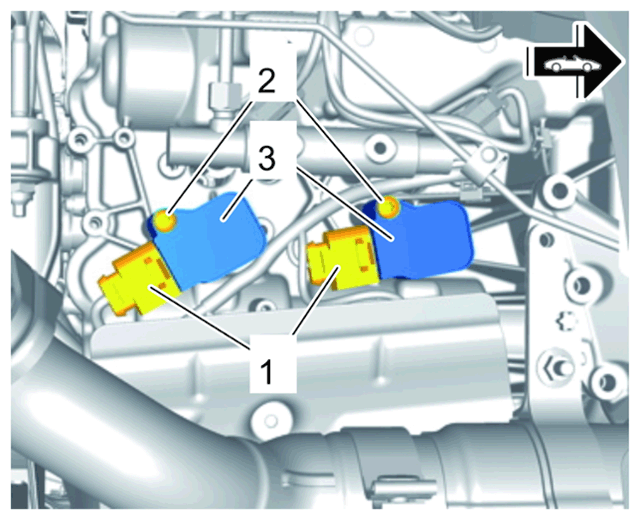

  1. Remove ignition coils for cylinders 1 and 2.
    1. 1.1 Release and pull off cable plug -1  -.
    2. 1.2 Unscrew fastening screws -2  -.
    3. 1.3 Pull off ignition coils -3  -.
    G14946028Courtesy of PORSCHE CARS NORTH AMERICA, INC.

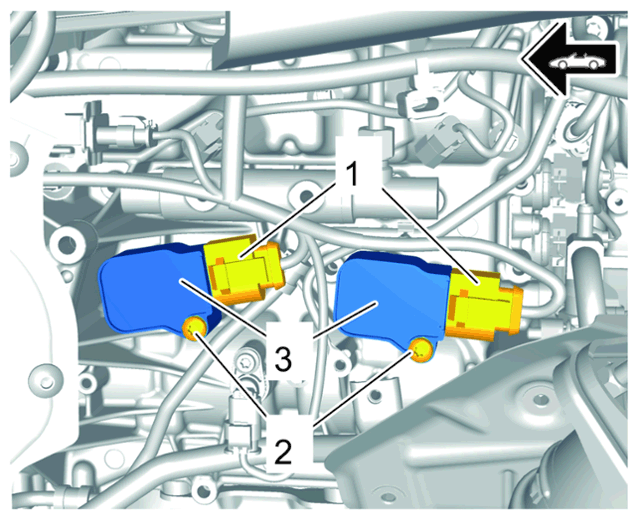

  2. Remove ignition coils for cylinders 3 and 4.
    1. 2.1 Release and pull off cable plug -1  -.
    2. 2.2 Unscrew fastening screws -2  -.
    3. 2.3 Pull off ignition coils -3  -.
    G14946029Courtesy of PORSCHE CARS NORTH AMERICA, INC.
