Installing Ignition Coils

WARNING: This page is about a different variant/trim than selected.

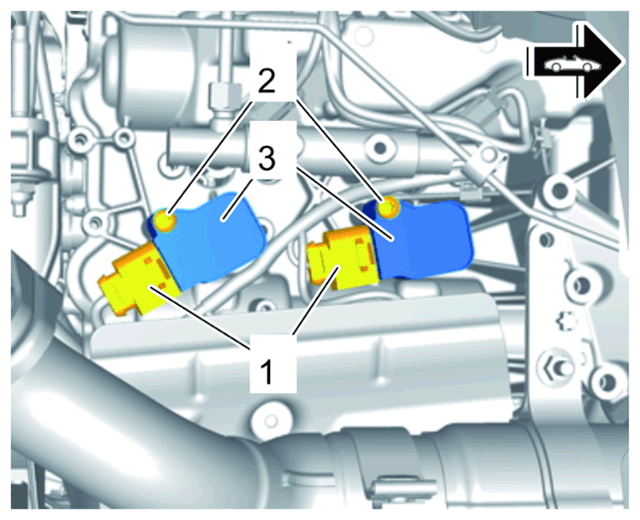

Install ignition coils for cylinders 3 and 4.
1. 1.1 Insert ignition coils -3 -.
2. 1.2 Screw in and tighten fastening screws -2 -.
  > Tightening torque 10 Nm (7.4 ftlb.)
3. 1.3 Plug in cable plug -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

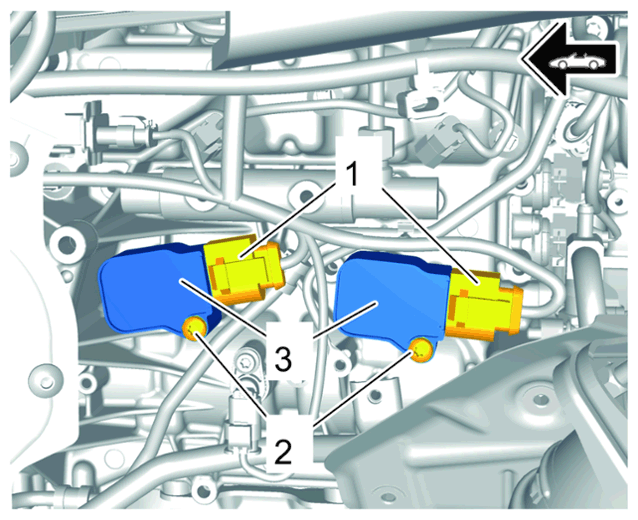

Install ignition coils for cylinders 1 and 2.
1. 2.1 Insert ignition coils -3 -.
2. 2.2 Screw in and tighten fastening screws -2 -.
  > Tightening torque 10 Nm (7.4 ftlb.)
3. 2.3 Plug in cable plug -1 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
