Removing And Installing Ignition Starter Switch

WARNING: This page is about a different variant/trim than selected.

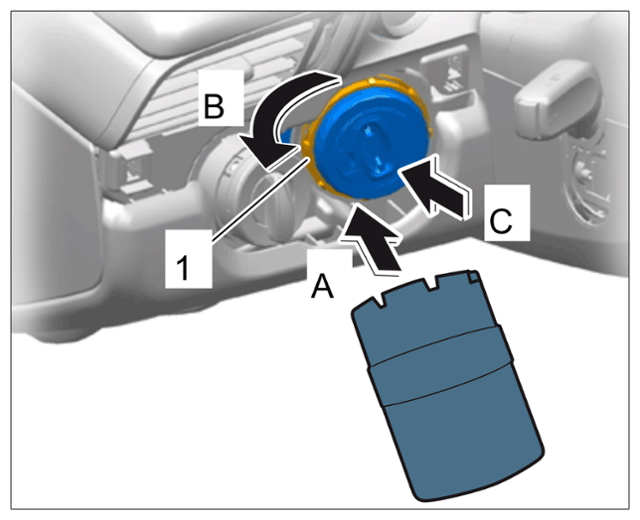

Unscrew union nut -1 - using > 9800 - wrench (-arrow B -).
Press ignition starter switch inwards -arrow C- and remove in a downward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

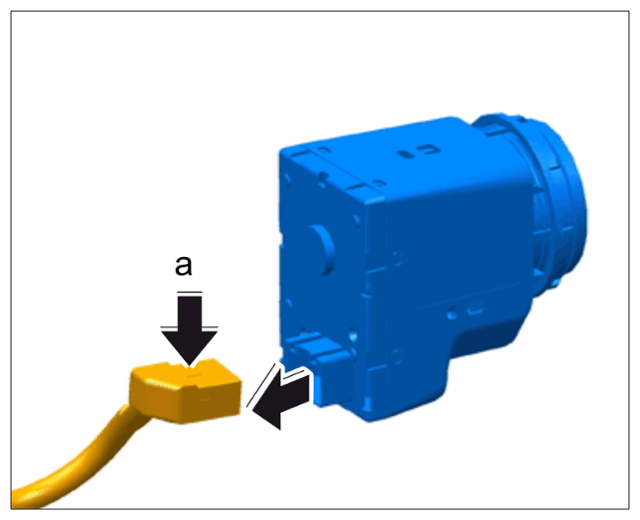

Release electric plug connection -arrow a- and disconnect it -arrow -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation is performed in reverse order. Pay particular attention to the following:
Tightening torque for union nut on ignition starter switch: > Tightening torque 6 Nm (4.5 ftlb.) + 1 Nm (0.5 ftlb.) - 0.5 Nm (0.3 ftlb.)
