Removing The Starter

WARNING: This page is about a different variant/trim than selected.

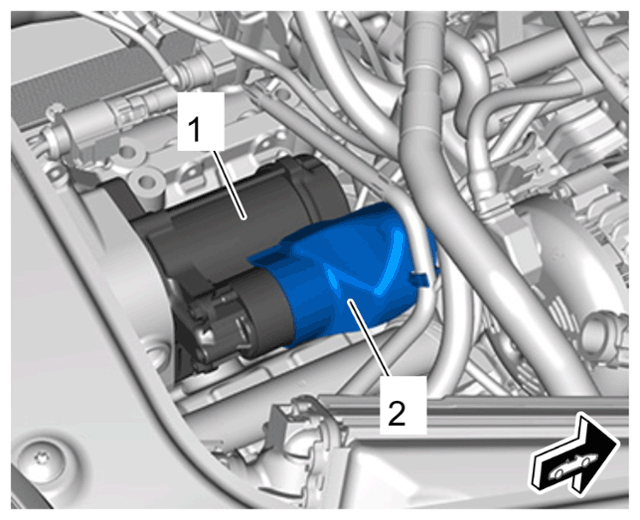

Remove cap -2 - from the starter -1 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

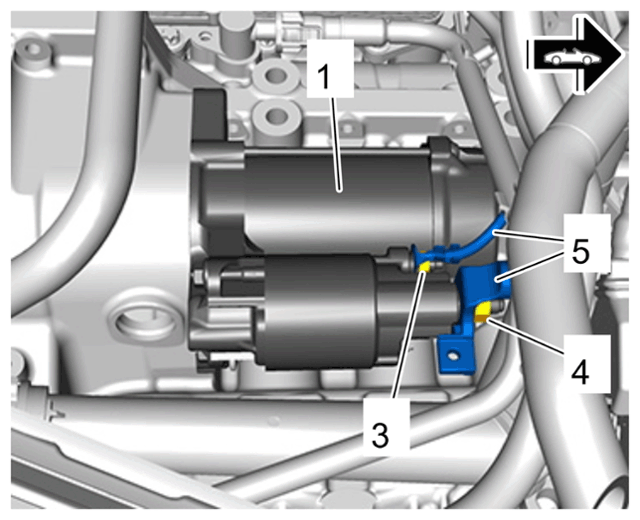

Disconnect electric connections on the starter -1 -.
1. 2.1 Screw off fastening nut securing B+ line -4 - to starter -1 -.
2. 2.2 Screw off fastening nut securing terminal 50 -3 - to starter -1 -.
3. 2.3 Remove electric lines -5 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

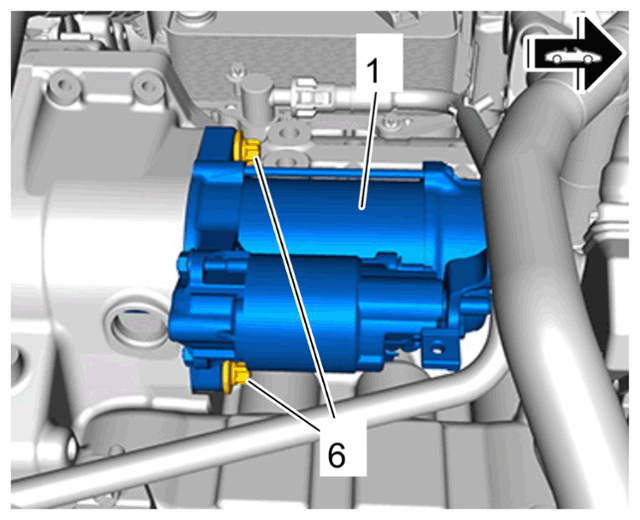

Unscrew fastening screws -6 - for the starter -1 - and lift the starter -1 - up out of the engine compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
