Removing Fuel Pump
WARNING: This page is about a different variant/trim than selected.
- Mark installation position of fuel pump.
Information
A bayonet lock is used here.

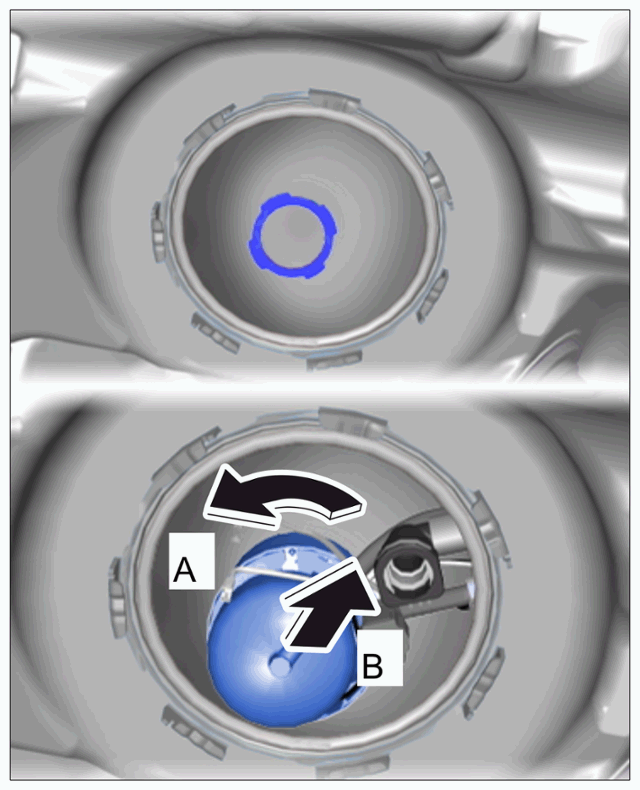

- Turn the fuel pump anti-clockwise -arrow A-
.
- Carefully guide the fuel pump out of the opening on the tank -arrow B
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
