Removing Leakage Diagnosis Unit

WARNING: This page is about a different variant/trim than selected.

Information

The leakage diagnosis unit is only installed on USA vehicles.

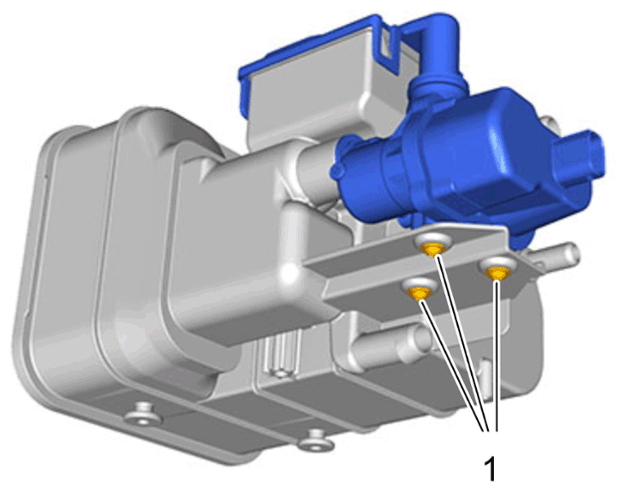

  1. Unscrew fastening screws -1  -.
    G14945674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

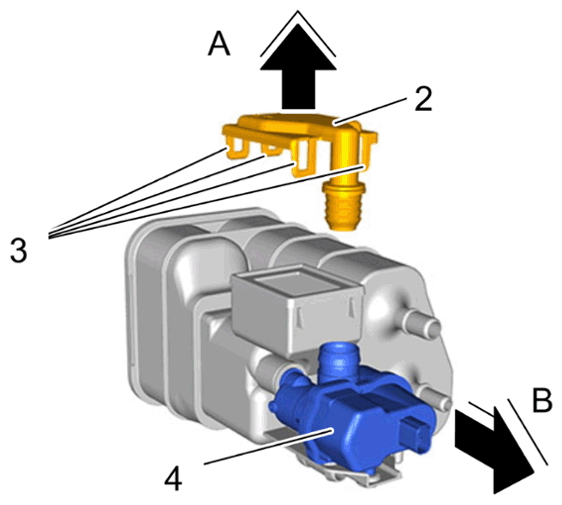

  2. Remove cover -2  -.
    1. 2.1 Release locking lugs -3  -.
    2. 2.2 Remove cover -2  - (-arrow A-  ).
  3. Remove leakage diagnosis unit -4  - (-arrow B  -).
    G14945675Courtesy of PORSCHE CARS NORTH AMERICA, INC.
