Removing Supply Line (Underbody)

WARNING: This page is about a different variant/trim than selected.

Guide out cover of fuel tank.
Support the fuel tank using > VAS 6931 - Transmission and Engine Jack .

Unclip coolant lines for heater in the tunnel.

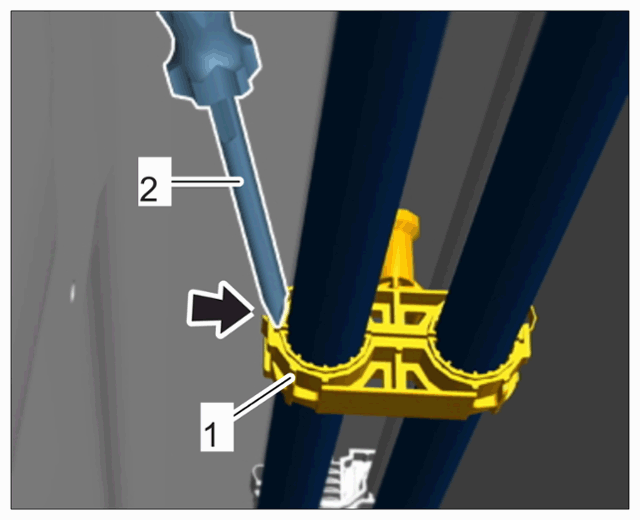

3.1 Release and open lock on the holders -1 - using a suitable tool -2 - (-arrow -).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

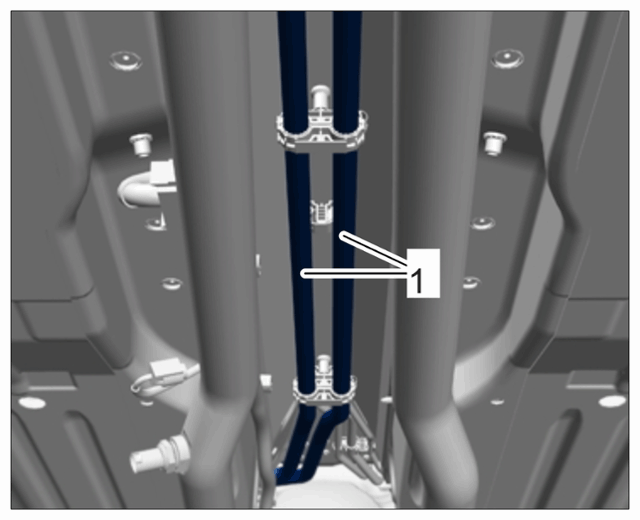

3.2 Unclip coolant lines for heater -1 - from the holder in order to expose the fuel line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

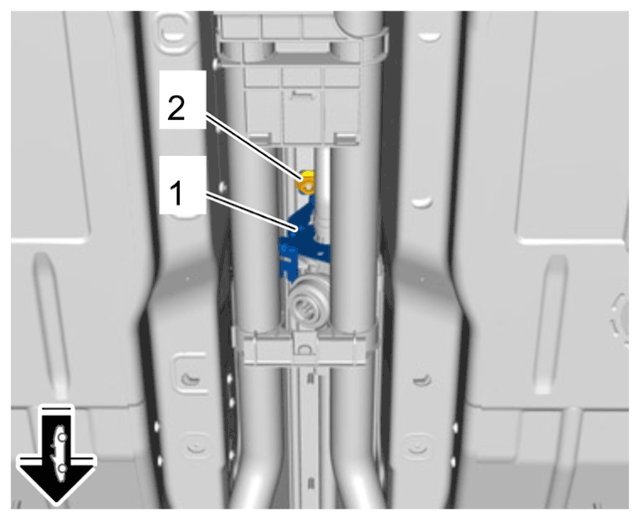

Loosen holder -1 - for the valve on the coolant line for the heater.
1. 4.1 Screw off fastening nut -2 -.
2. 4.2 Loosen holder -1 - for the valve on the coolant line for the heater from the underbody until the fuel line is exposed.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
  - → Avoid contact with hot parts or sources of ignition.
  - → Use suction to remove ignitable vapours.
  - → Attach warning sign in a clearly visible position.
  - → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
  - → Secure collection containers/vessels to prevent them from tipping over.

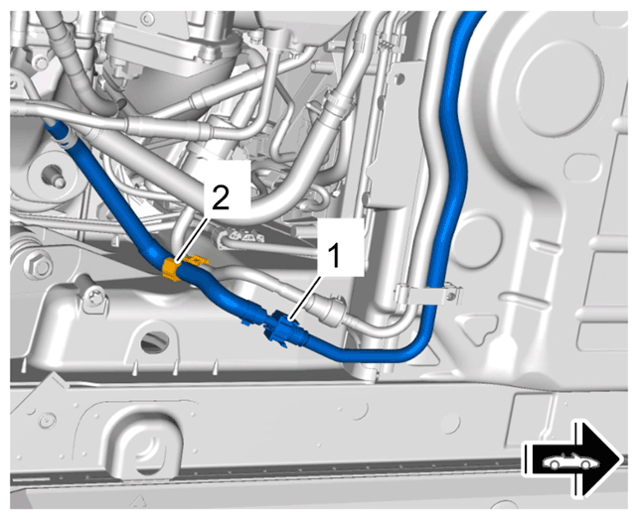

Disconnect fuel line -1 - at the rear left bulkhead.
1. 5.1 Release lock on the holder -2 - using a suitable tool.
2. 5.2 Open clamping bow on the holder -2 - and unclip fuel line -1 -.
3. 5.3 Disconnect plug connection for the fuel line -1 - at the bulkhead.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

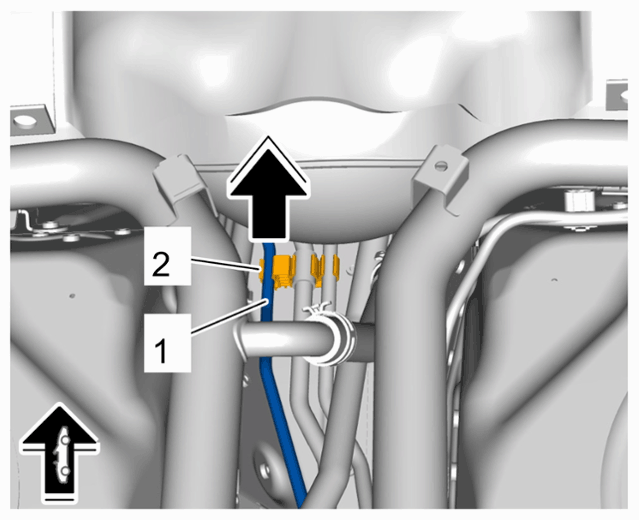

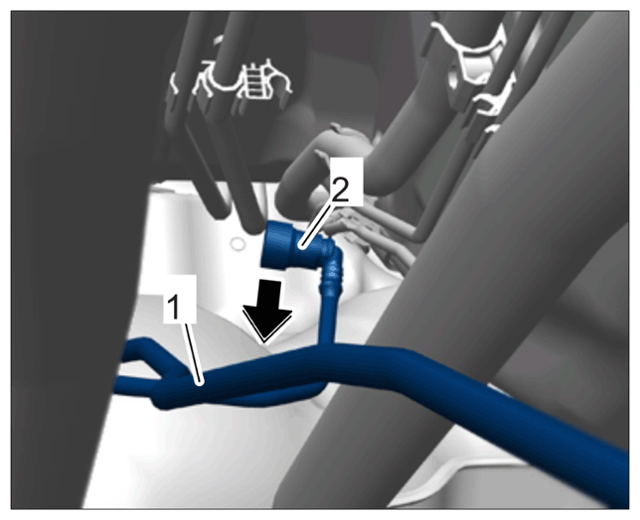

Unclip fuel line -1 - in the front tunnel from holder -2 - (-arrow -).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

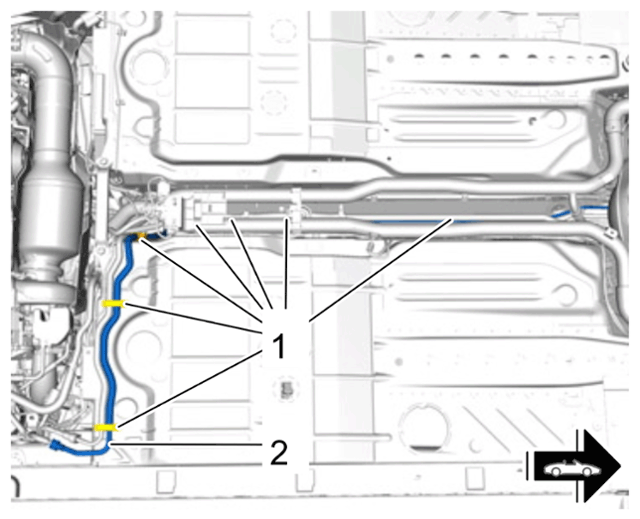

Release locks on the holders -1 - using a suitable tool and unclip fuel line -2 -.
Leave the fuel line -2 - hanging down.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Get another person to help you to guide out the fuel line.
Lower the vehicle as far as required so that the mechanic lying on a creeper board under the vehicle can guide out the fuel line.
Have a step ladder or pedestal ready beside the vehicle so that your helper can guide the fuel line along.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
  - → Avoid contact with hot parts or sources of ignition.
  - → Use suction to remove ignitable vapours.
  - → Attach warning sign in a clearly visible position.
  - → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
  - → Secure collection containers/vessels to prevent them from tipping over.

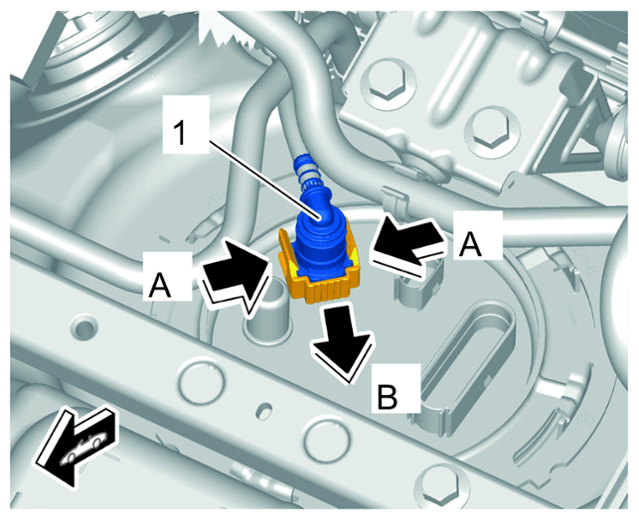

Disconnect plug-in coupling for the fuel line in the technical equipment space.
1. 12.1 Press the lock -arrows A - and pull off the fuel line -arrow B -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Plastic lines must not be kinked or bent as this can make them brittle and start to leak.

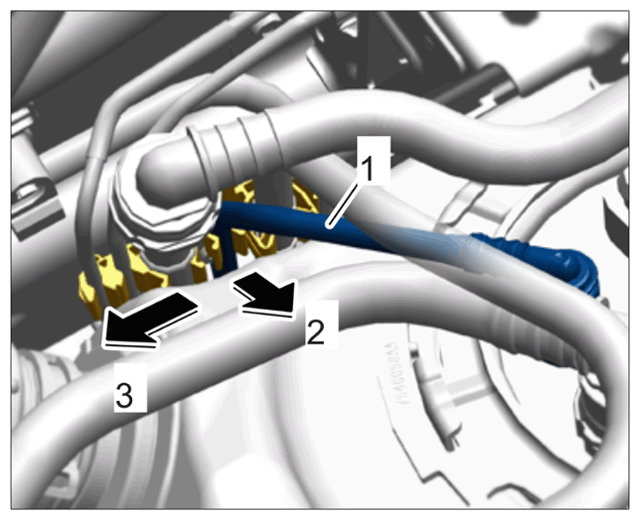

Unclip fuel line -1 - (-arrow 2- ) and move the line as far as the foam -arrow 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Plastic lines must not be kinked or bent as this can make them brittle and start to leak.

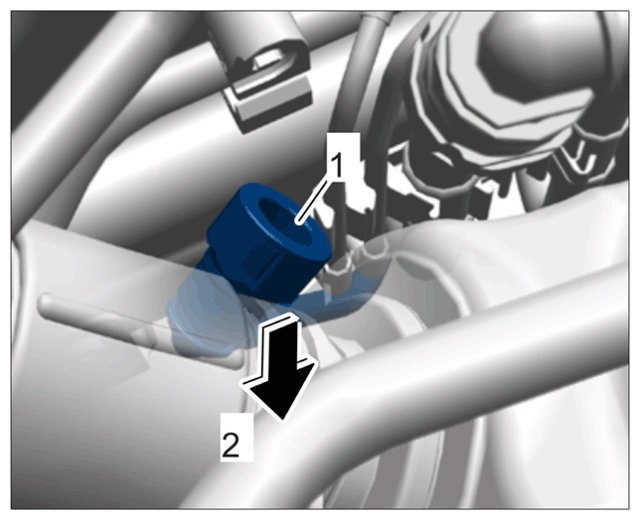

Guide the fuel line and plug-in coupling -1 - down between the foam and bulkhead -arrow 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Plastic lines must not be kinked or bent as this can make them brittle and start to leak.
Guide out the fuel line -1 - from below -arrow -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
