Subsequent Work

WARNING: This page is about a different variant/trim than selected.

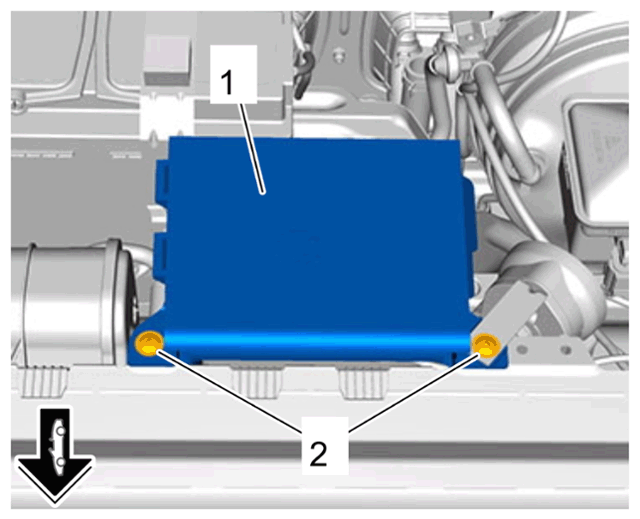

  1. Install holder for on-board compressor -1  - and tighten fastening screws -2  -. > Tightening torque 3 Nm (2 ftlb.)
    G14945641Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install air inlet housing.

    > WM, 851419 REMOVING AND INSTALLING AIR INLET

  3. Position and secure battery retaining bracket.

    > 270619 REMOVING AND INSTALLING BATTERY

  4. Install technical equipment space cover.

    > WM, 852219 REMOVING AND INSTALLING TECHNICAL EQUIPMENT SPACE COVER
