Removing Carbon Canister

Information

The leakage diagnosis unit is only installed on USA vehicles.

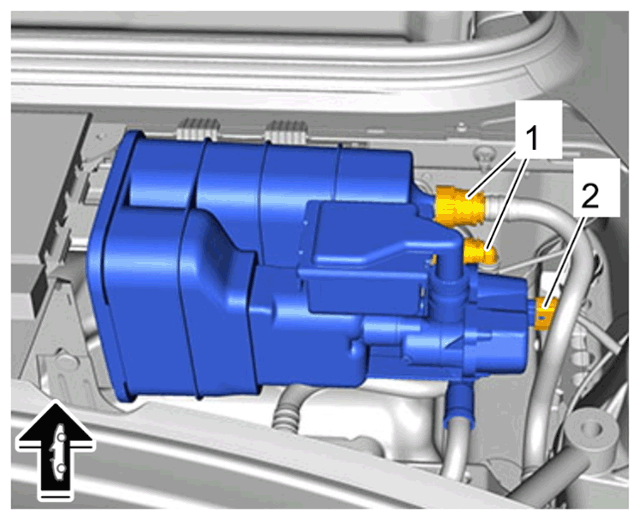

1. Release and disconnect plug-in couplings -1  - on the carbon canister.
2. Release and disconnect electric plug connection -2  - on the leakage diagnosis unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

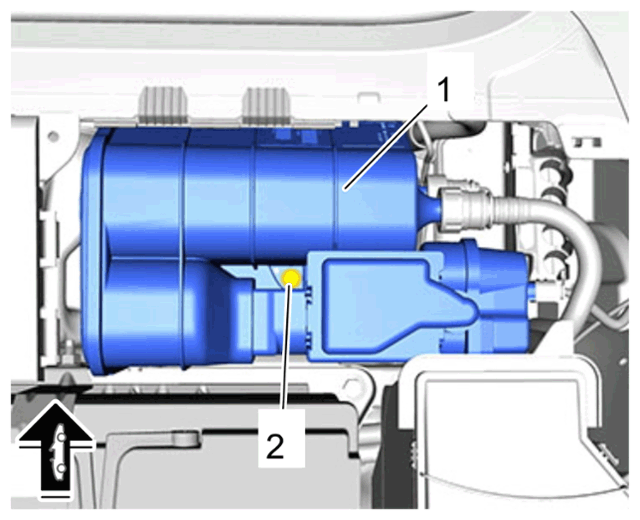

3. Unscrew fastening screw -2  - and remove using a bar magnet.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

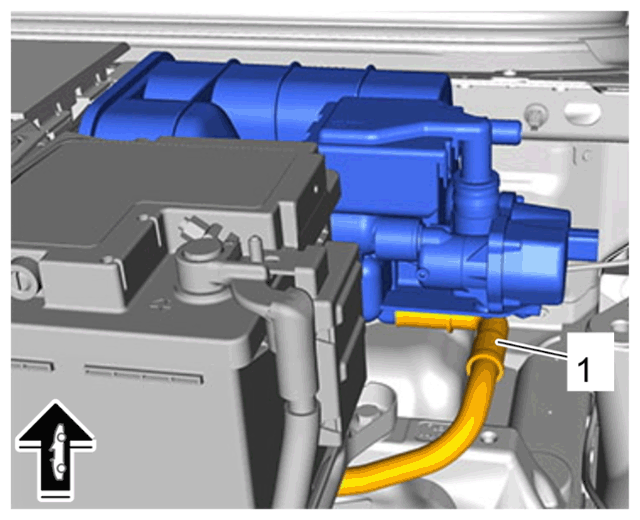

4. Pull vent line -1  - off the carbon canister.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

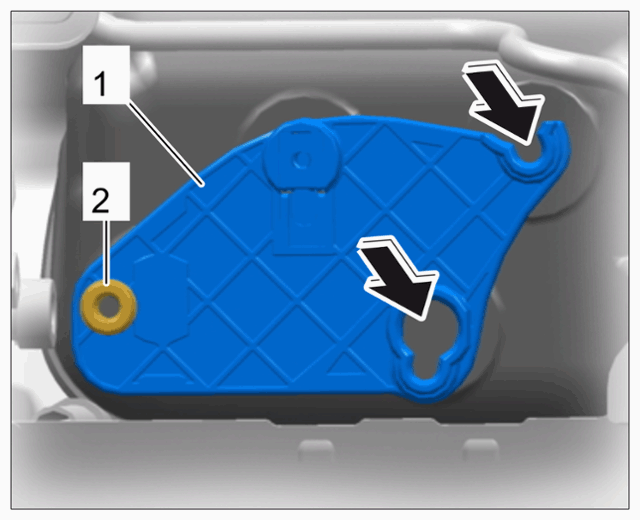

5. Loosen and remove carbon canister by moving it towards the battery and out of the mounting points -arrows  - for the mounting plate -1  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
