Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove technical equipment space cover.

    > WM, 852219 REMOVING AND INSTALLING TECHNICAL EQUIPMENT SPACE COVER

  2. Loosen battery retaining bracket and move battery to the left in direction of travel.

    > 270619 REMOVING AND INSTALLING BATTERY

  3. Remove air inlet housing.

    > WM, 851419 REMOVING AND INSTALLING AIR INLET

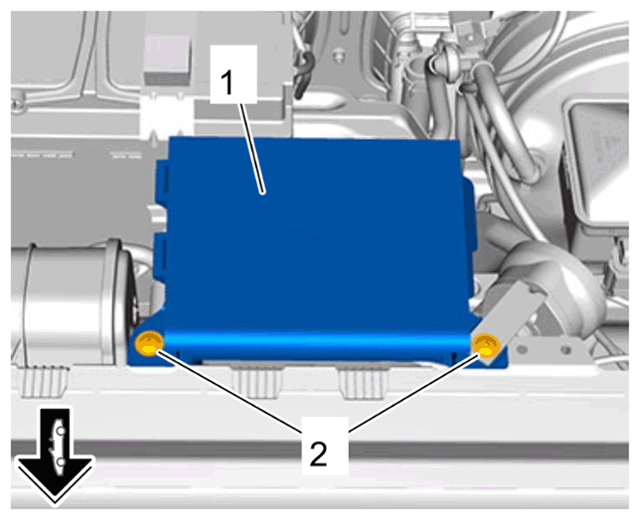

  4. Unscrew fastening screws -2  - and remove holder for on-board compressor -1  -.
    G14945636Courtesy of PORSCHE CARS NORTH AMERICA, INC.
