Removing Purge-Air Line

WARNING: This page is about a different variant/trim than selected.

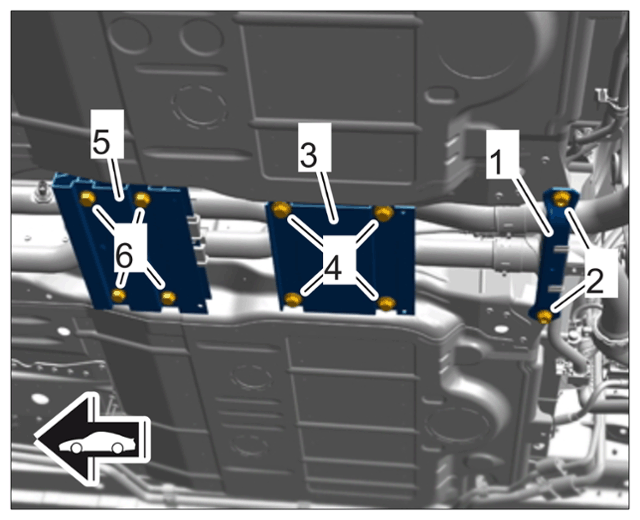

  1. Remove brace plates -3 and 5-  .
    1. 1.1 Unscrew fastening screws -4  - on the center brace plate -3  -.
    2. 1.2 Unclip center brace plate -3  - from holder for the plug connections.
    3. 1.3 Unscrew fastening screws -6  - on the front brace plate -5  -.
    4. 1.4 Unclip front brace plate -5  - from coolant pipes.
    G14945616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

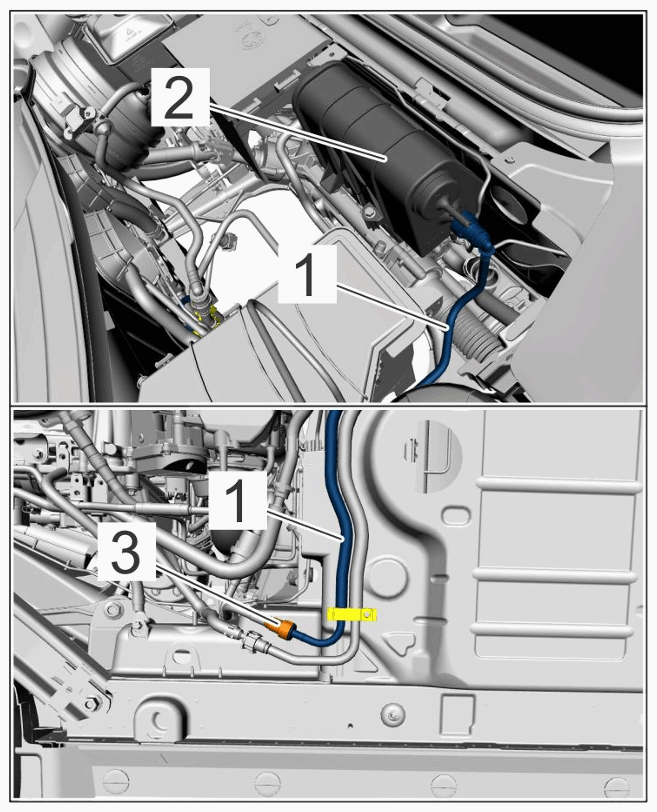

  2. Disconnect purge-air line -1  -.
    1. 2.1 Release and disconnect connection on the carbon canister -2  -.
    2. 2.2 Release and disconnect connection at the engine connection point -3  -.
    G14945617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

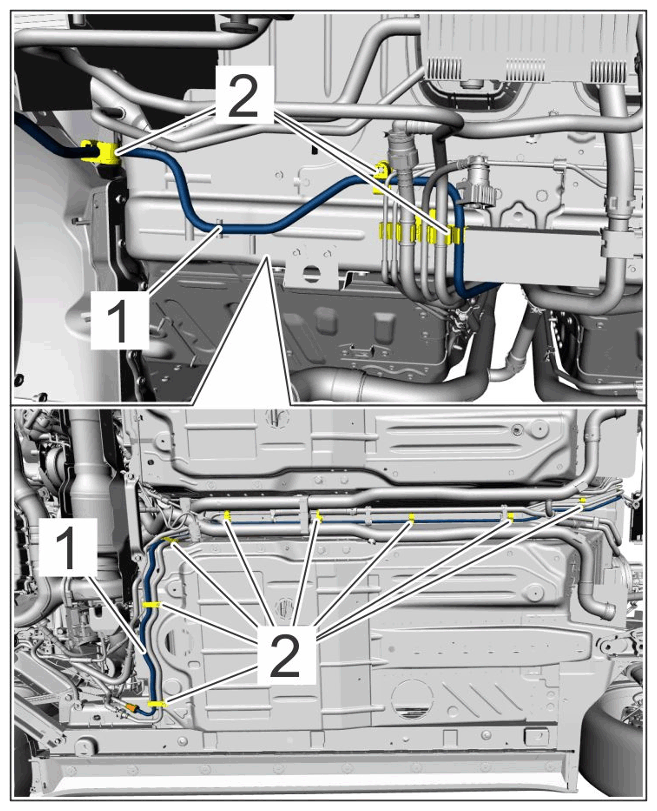

  3. Remove purge-air line -1  -.
    1. 3.1 Release purge-air line -1  - from the holders -2  - and pull it off.
    2. 3.2 Guide out purge-air line -1  -.
    G14945618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
