Removing Filler Neck

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    • → Avoid contact with hot parts or sources of ignition.
    • → Use suction to remove ignitable vapours.
    • → Attach warning sign in a clearly visible position.
    • → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    • → Secure collection containers/vessels to prevent them from tipping over.

Information

Watch out for emerging fuel when disconnecting fuel lines. Place a clean cloth on the connection point, then loosen the connection.

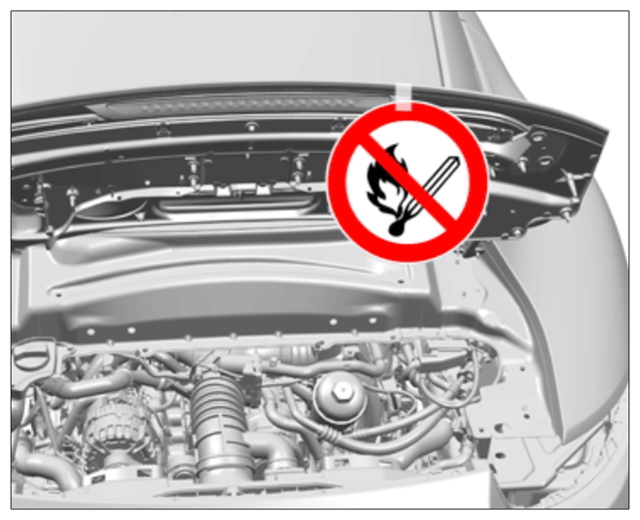

  1. Place a warning sign in a clearly visible position in the work area or on the vehicle.
    G14945565Courtesy of PORSCHE CARS NORTH AMERICA, INC.

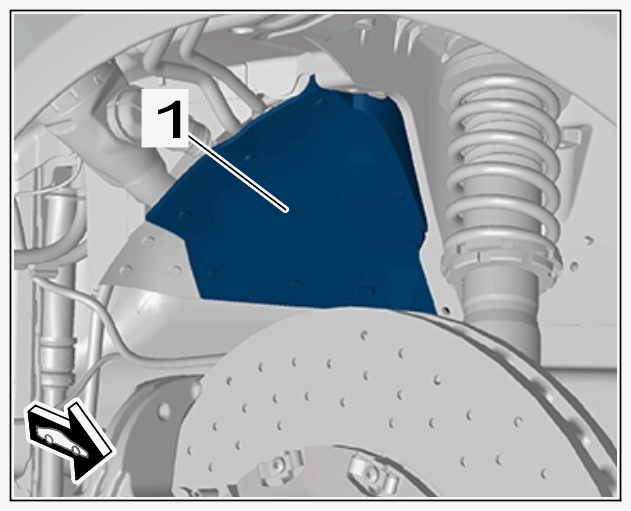

  2. Remove moulded part -1  -.
    G14945566Courtesy of PORSCHE CARS NORTH AMERICA, INC.

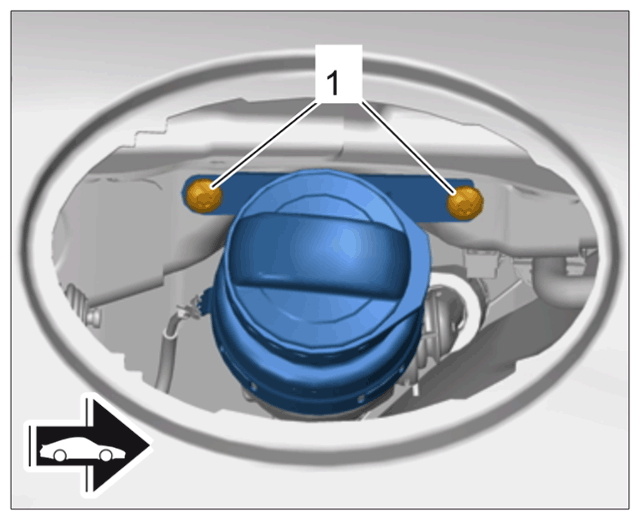

  3. Unscrew screws -1  - on the filler neck.
    G14945567Courtesy of PORSCHE CARS NORTH AMERICA, INC.

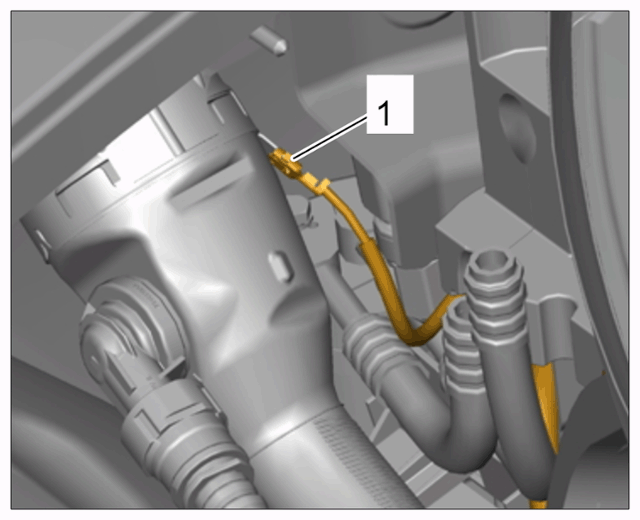

  4. Disconnect ground line -1  - at the filler neck.
    G14945568Courtesy of PORSCHE CARS NORTH AMERICA, INC.

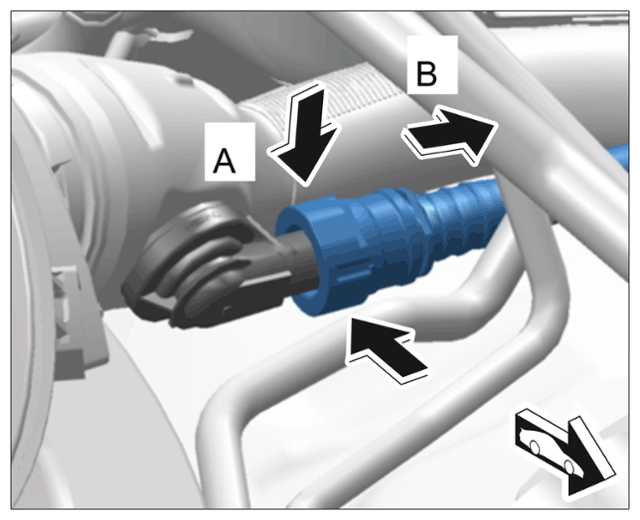

  5. Release tank vent line at the filler neck -arrows A  - and disconnect it -arrow B  -.
    G14945569Courtesy of PORSCHE CARS NORTH AMERICA, INC.

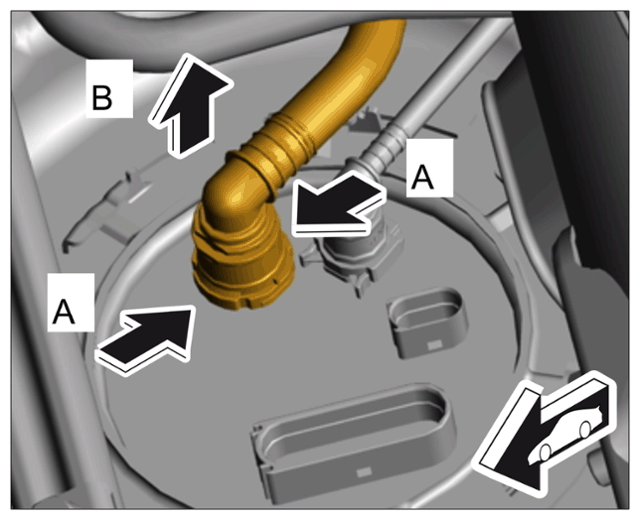

  6. Release tank vent line at the fuel tank -arrows A  - and disconnect it -arrow B  -.
    G14945570Courtesy of PORSCHE CARS NORTH AMERICA, INC.

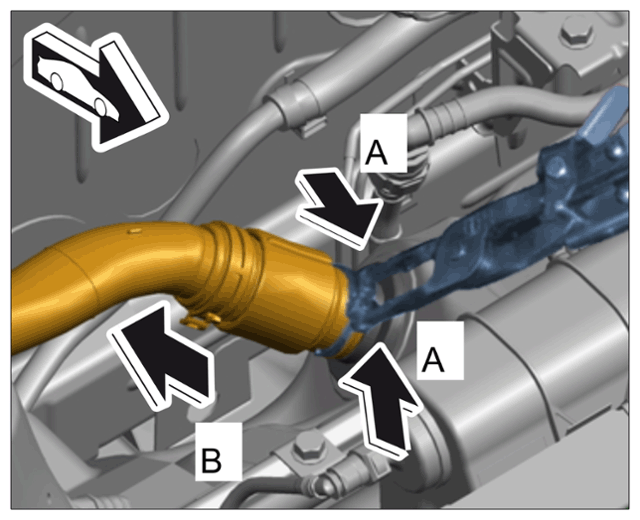

  7. Loosen clamp for filler neck -arrows A  - and pull filler neck off the fuel tank -arrow B  -.
    G14945571Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Guide out filler neck using a twisting motion and remove it from the body aperture.
