Checking Fuel Quality

Information

• Only carry out the analysis in well-ventilated rooms and at room temperature (20° Celsius).
• Before starting the analysis, have a good look at the information on the CD and read the leaflet (supplied in the case) carefully.
• This analysis can only determine a reference value; a laboratory test is required for an exact analysis.
• The analysis does not constitute a legal basis; it is the starting point for further steps.

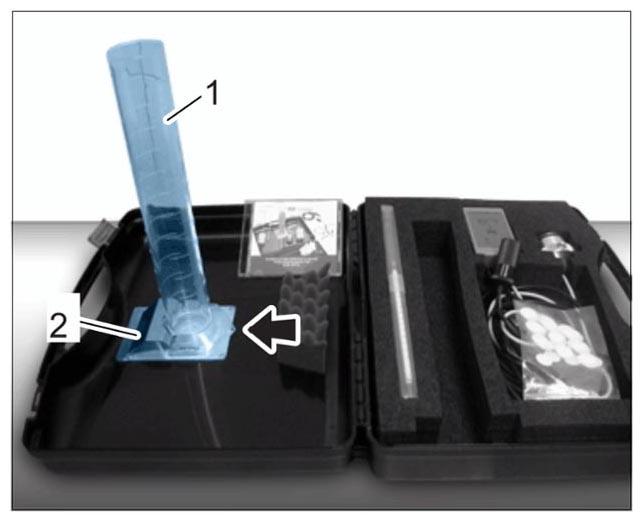

1. Push the measuring cylinder -1  - into the fixing clip -2  - in the case -Arrow  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

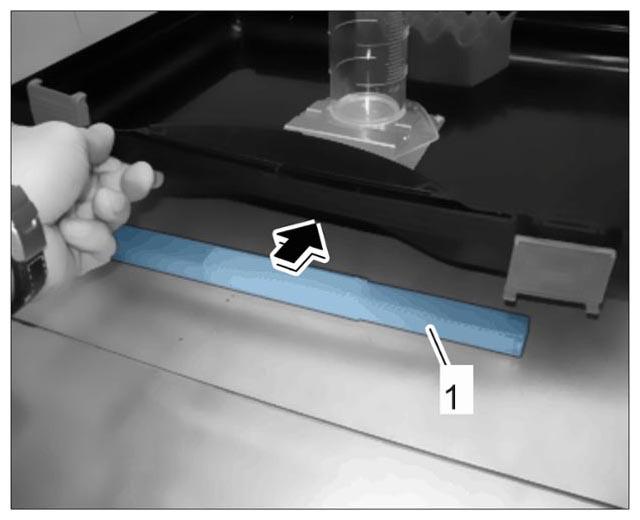

2. Place the spindle sleeve -1  - under the lid of the case -Arrow  - so that the measuring cylinder is horizontal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

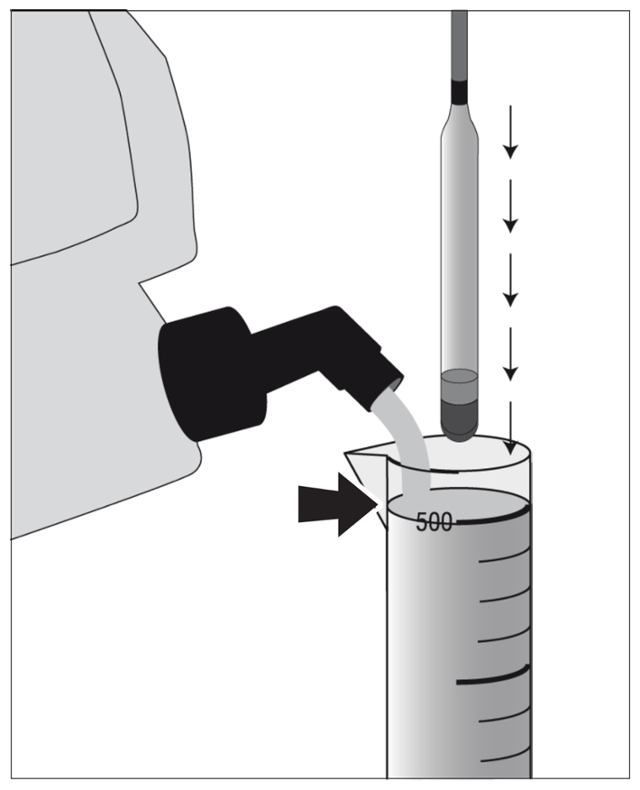

3. Pour 500 milliliters (ml) -Arrow  - of fuel into the measuring cylinder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Carefully immerse the measuring spindle in the liquid and let it go.

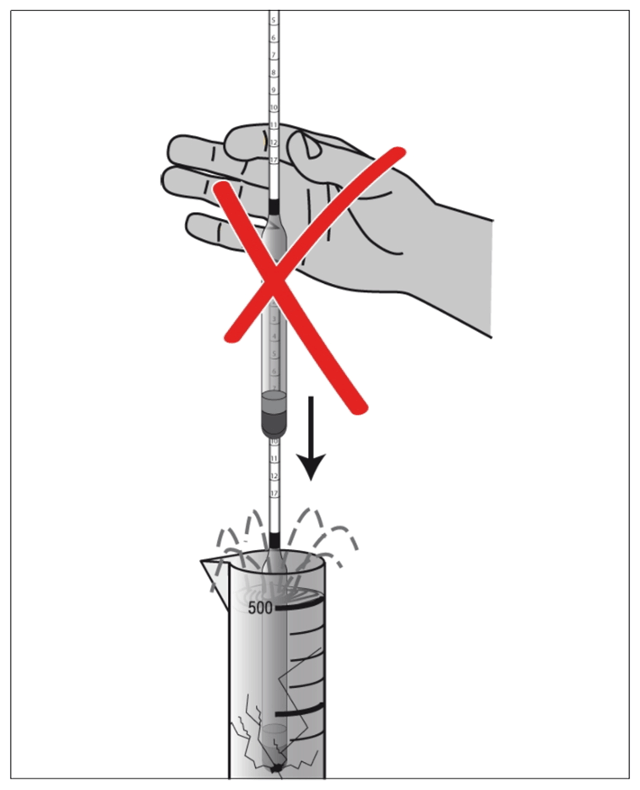

   Do not drop the measuring spindle!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

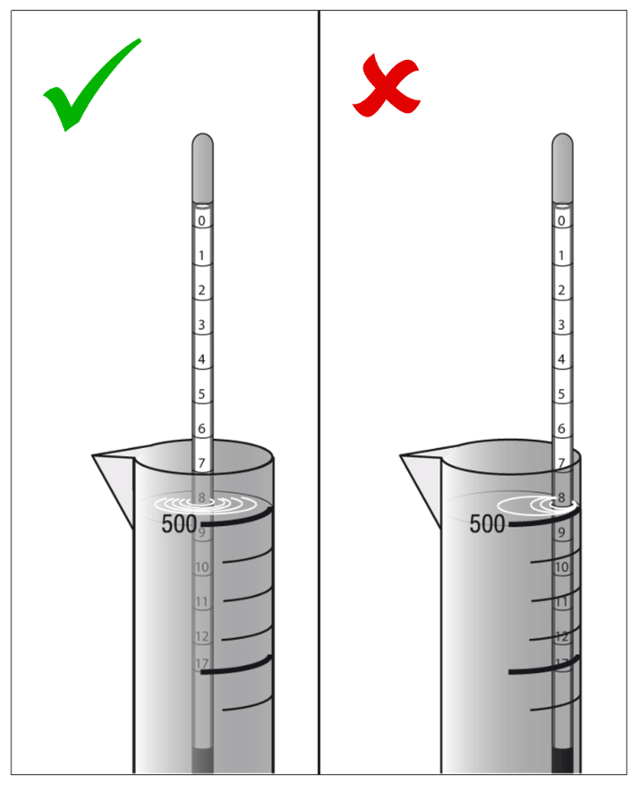

   1. 4.1 The spindle must be floating in the middle in order to read off the scale value.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

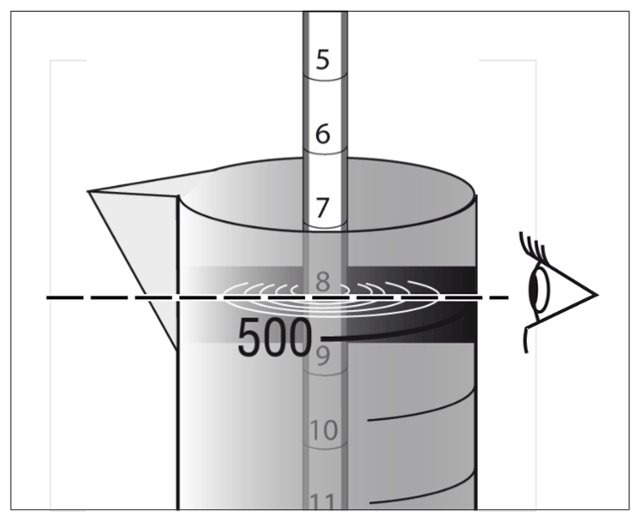

   2. 4.2 Read off the scale value.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Assign the scale value using the table below.

   Scale value (at 20° Celsius)	Assessment	Comment
   below 0	Case for fuel laboratory (neither petrol nor diesel)	Laboratory test required
   0... 5.5	Petrol EN 228
   4.5... 6.5	E 85
   approx. 7	E 100 (pure ethanol)
   7... 9	No evaluation possible (neither petrol nor diesel)	Laboratory test required
   9... 11	Diesel in Asia (Russia/India)
   10... 13	Diesel in accordance with EN 590 (Europe)
   13... 15	No evaluation possible, "wild mix"	Laboratory test required
   15... 17	Biodiesel	Laboratory test required
   above 17	Measuring spindle does not stay in the fuel (water-like density)	Laboratory test required

   Information

   • Fuel, fuel mixes and cleaning mixes must be disposed of according to the applicable national regulations.

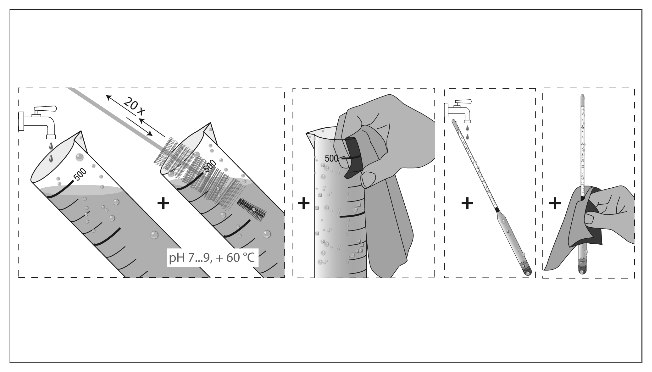

6. After testing the fuel, wash out and wash off measuring equipment thoroughly using the cleaning brush, washing-up liquid and hot water.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. After analyzing the fuel quality, carry out the required measures.
