Installing Catalytic Converter

WARNING: This page is about a different variant/trim than selected.

Place catalytic converter in installation position.
1. 1.1 Use new seals and nuts.
2. 1.2 Do not trap clamp on the right holder.

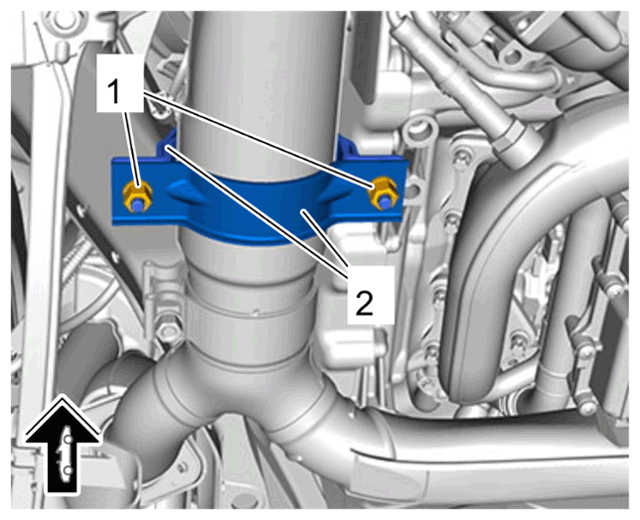

Tighten nuts -1 - securing catalytic converter holder -2 - to engine bracket at the right.
> Tightening torque 15 Nm (11 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

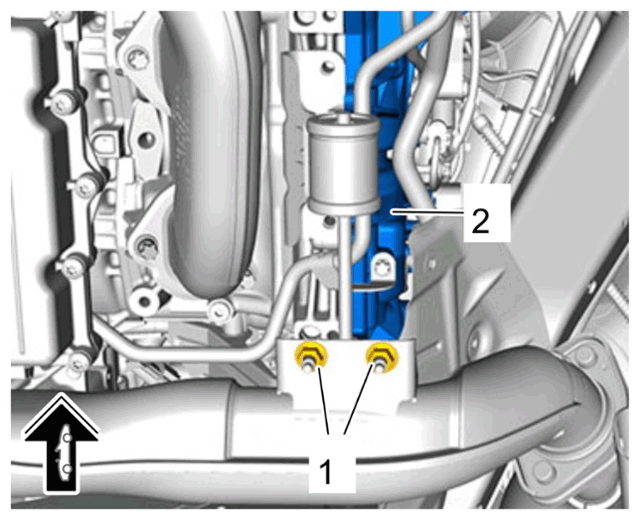

Tighten nuts -1 - for catalytic converter holder on the cylinder head cover -2 - at the left.
> Tightening torque 18 Nm (13 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

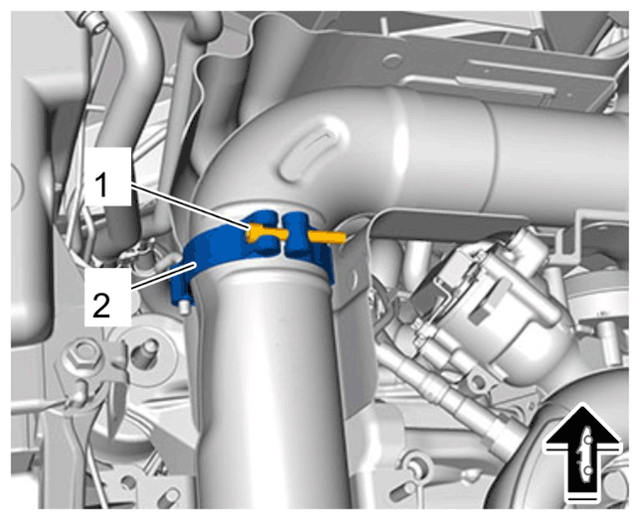

Tighten screw -1 - on clamp -2 - securing catalytic converter holder to cylinder head cover.
> Tightening torque 14 Nm (10.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

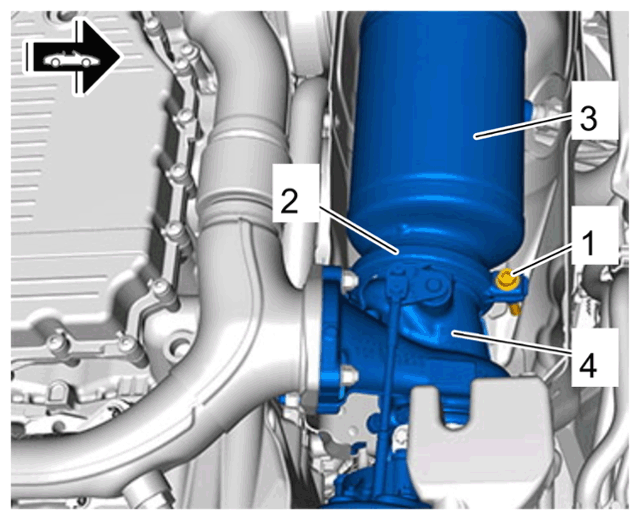

Tighten screw -1 - securing clamp -2 - securing catalytic converter -3 - to turbocharger -4 -.
1. 5.1 Fit new seal on flange from catalytic converter to turbocharger.
2. 5.2 Replace clamp -2 -.
3. 5.3 Tighten the screw.
  > Tightening torque 20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

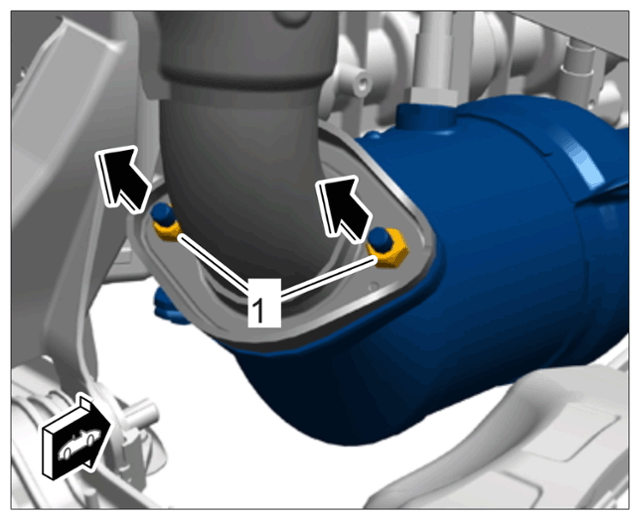

Tighten new nuts -1 - at the connection point for the catalytic converter on the rear silencer. Use new seals.
> Tightening torque 23 Nm (17 ftlb.)
