Assembly Overview - Catalytic Converter/Exhaust Manifold Holder

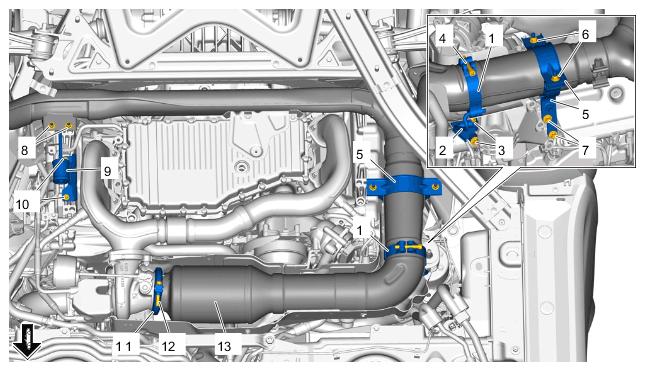

Fig 1: Catalytic Converter/Exhaust Manifold Holder Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Clamp
2. Clamp holder
3. Screw, M8 x 35 > Tightening torque 23 Nm (17 ftlb.)
4. Screw > Tightening torque 14 Nm (10.5 ftlb.)
5. Holder
6. Collar nut, M8 > Tightening torque 15 Nm (11 ftlb.)
7. Screws, M8 x 25 > Tightening torque 23 Nm (17 ftlb.)
8. Collar nut, M8 > Tightening torque 18 Nm (13 ftlb.)
9. Holder
10. Screw, M8 x 20 > Tightening torque 23 Nm (17 ftlb.)
11. Clamp/replace
12. Screw for clamp > Tightening torque 20 Nm (15 ftlb.)
13. Catalytic converter
