Remove Control Box

Information

• The ball socket is preset and must not be loosened.
• The control box is supplied as a complete spare part and includes the push rod, ball socket and decoupling plate.

Information

• The clamp must always be replaced after it has been opened.

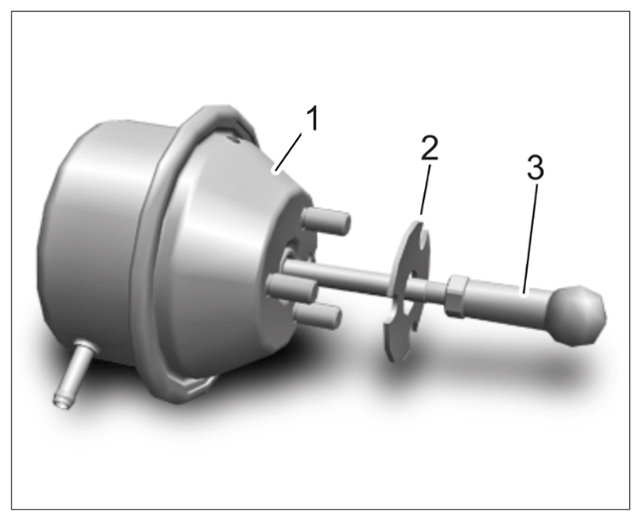

Component overview of spare part:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Control box
2. Decoupling plate
3. Ball socket with push rod

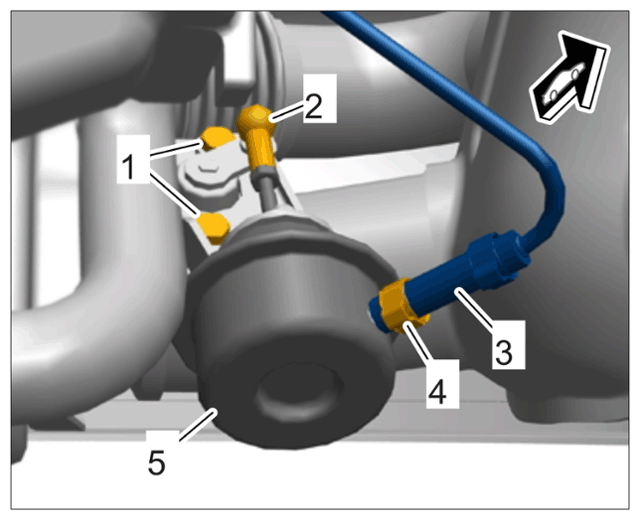

1. Remove control box -5  - and holder.
   1. 1.1 Lever off ball socket -2  - on the flap lever.

      Spray with anti-rust agent if necessary.

   2. 1.2 Open clamp -4  - on the connecting hose -3  - and pull off connecting hose -3  -.
   3. 1.3 Unscrew fastening screws.-1  -
   4. 1.4 Remove control box for exhaust flaps -5  - and holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

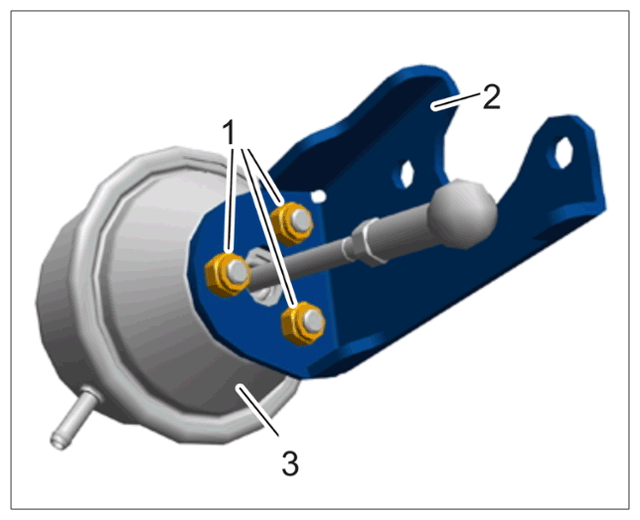

2. Unscrew fastening nuts -1  - and pull holder -2  - out of the control box -3  -.
   1. 2.1 Check the installation position of the ball socket with respect to the position of the ball joint on the exhaust flap.
