Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Support plate to V strut | Item 6: Hexagon nut M10 x 1.5 | Tightening torque | 65 Nm (47.9 ftlb.) | ||
| V strut to body | Item 2: Hexagon-head bolt M10 x 1.5 x 55/replace after every removal | Initial tightening | 35 Nm (25.8 ftlb.) | ||
| V strut to body | Item 2: Hexagon-head bolt M10 x 1.5 x 55/replace after every removal | Final tightening | + 60° | ||
| Heat shield to body | Speed nut, hexagon | Tightening torque | 2.5 Nm (2 ftlb.) | ||
| Nuts for center rear heat shield | Collar nut, M6 | Tightening torque | 8 Nm (6 ftlb.) | ||
| Fastening screws at bottom of rear bumper at bottom | Tightening torque | 4.5 Nm (3.3 ftlb.) | |||
|

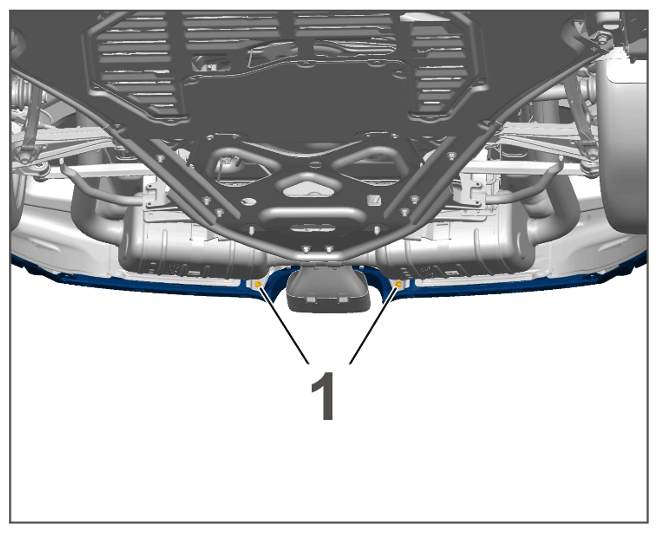

Lower fastening screws at the center |
|||||
