Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Clamp on rear muffler	Cheese head bolt, M8 x 55 - replace clamp	Tightening torque	15 Nm (11.1 ftlb.)
Clamping sleeve between rear mufflers		Tightening torque	23 Nm (17 ftlb.)
Tailpipe trim for 2.5 litre engine to rear muffler	Collar nut, M10	Tightening torque	55 Nm (40.6 ftlb.)
Tailpipe trim for 2.0 litre engine to rear muffler	Collar nut, M10	Tightening torque	55 Nm (40.6 ftlb.)
Rear muffler holder to Porsche Doppelkupplung (double-clutch transmission)	Screw, M10 x 25	Tightening torque	44 Nm (32.5 ftlb.)
Rear muffler holder to manual transmission	Screw, M8 x 20	Tightening torque	23 Nm (17 ftlb.)
Rear muffler/exhaust manifold flange and cross tube	Collar nut, M8	Tightening torque	23 Nm (17 ftlb.)
Shield to catalytic converter holder	Screw, M6 x 12	Tightening torque	10 Nm (7.4 ftlb.)
Exhaust flap control box to holder	Lock nut, M5	Tightening torque	6 Nm (4.4 ftlb.)
Control box holder mounting	M6 screw - grease with high-temperature paste	Tightening torque	10 Nm (7.4 ftlb.)
Shield to cylinder head cover, cylinder bank 1-2	External Torx screw, M6 x 12	Tightening torque	10 Nm (7.4 ftlb.)
Holder for loudspeakers for exterior acoustics to rear wall		Tightening torque	7.5 Nm (5.5 ftlb.)

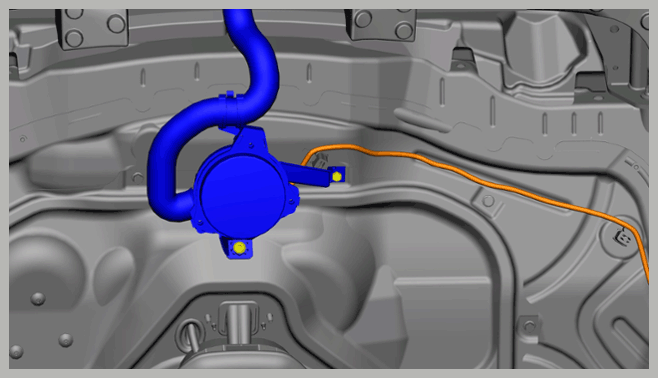

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loudspeakers for exterior acoustics
Cover for loudspeakers for exterior acoustics to loudspeakers for exterior acoustics housing		Tightening torque	4 Nm (3 ftlb.)

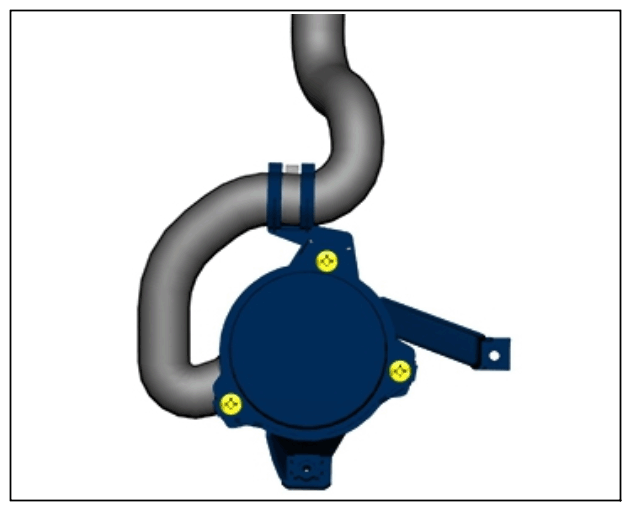

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on cover for loudspeakers for exterior acoustics
Loudspeakers for exterior acoustics to rear wall cover	Collar nut, M6	Tightening torque	5 Nm (3.7 ftlb.)
