Subsequent Work

WARNING: This page is about a different variant/trim than selected.

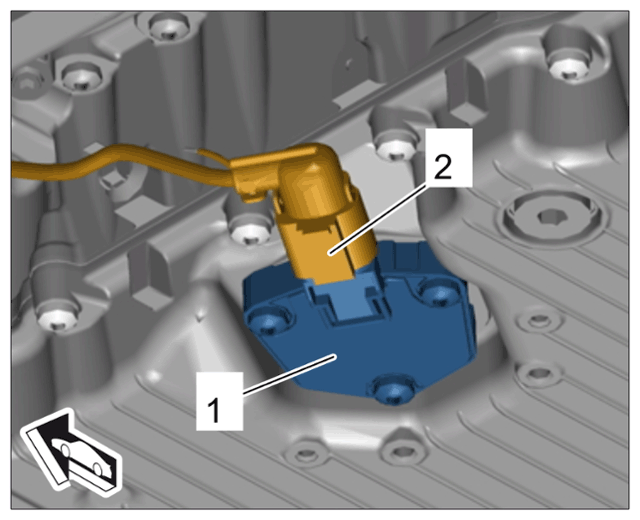

Connect cable plug -2- for oil-level sender -1- and check that it is seated securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for oil level sensor

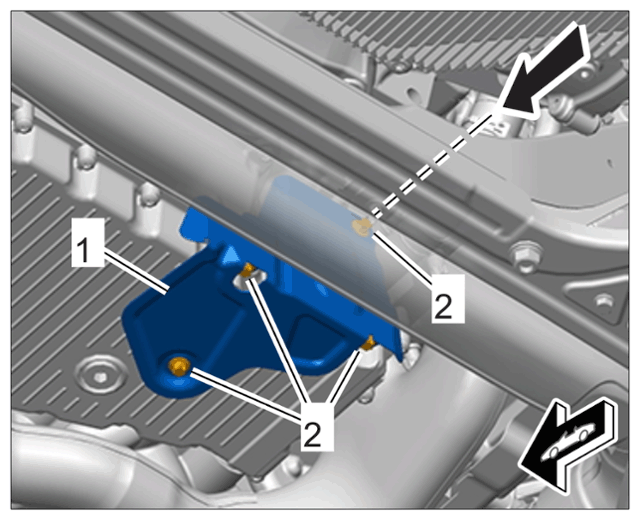

Install heat shield -1- .
1. 2.1 Fit and tighten screws.
  > Tightening torque 10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on lower part of oil pan
Fill in engine oil.
> 170117 CHANGING ENGINE OIL AND OIL FILTER .
Start the engine and let it heat up until operating temperature is reached (oil temperature is at least 80°C).
1. 4.1 Oil temperature can be checked using the PIWIS Tester.
2. 4.2 Visually check the oil pan for leaks.
3. 4.3 Check oil level.
  > 170101 CHECKING ENGINE-OIL LEVEL .
