Installing Oil Pan

WARNING: This page is about a different variant/trim than selected.

Grease seals with a thin layer of Kluber Syntheso Glep.
Place oil pan in installation position.
Secure the oil pan.
1. 3.1 Screw in internal Torx screws (M6 x 25) and tighten according to tightening sequence -1 to 23- . Re-tighten screws -1 to 4- .
  > Tightening torque 13 Nm (9.5 ftlb.)

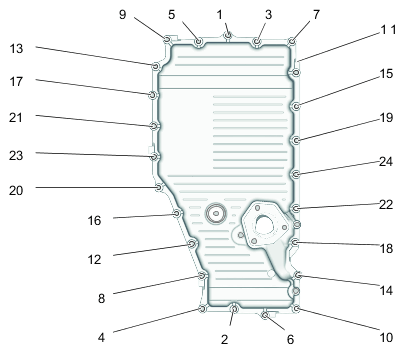

Fig 1: Lower Part Of Oil Pan To Upper Part Of Oil Pan Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for securing lower part of oil pan to upper part of oil pan
Insert oil level sensor with new seal (if removed).
> 170919 REMOVING AND INSTALLING OIL-LEVEL SENDER .
