Removing Oil/Water Heat EXCHANGER

WARNING: This page is about a different variant/trim than selected.

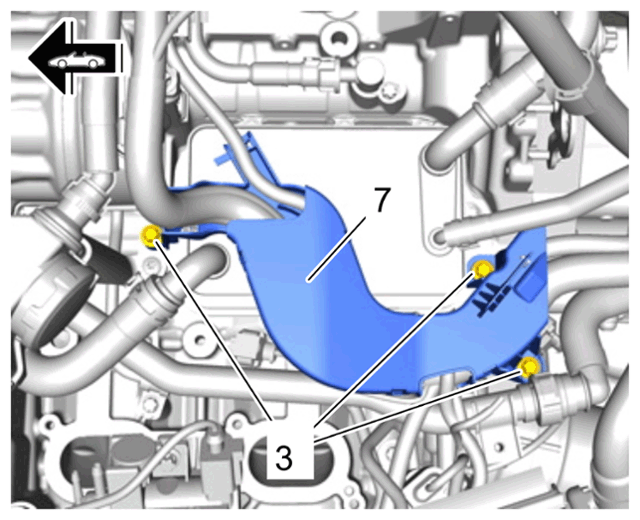

Unscrew fastening screws -3- .
Move cable shaft -7- aside slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable shaft

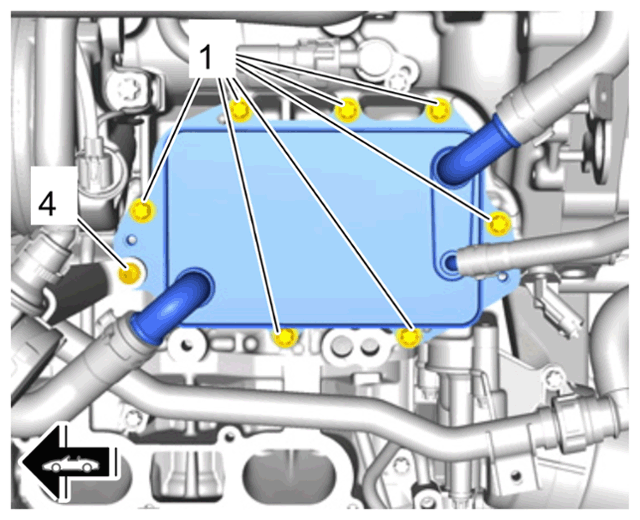

Unscrew fastening screws -1- .
Unscrew and remove fastening screw -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

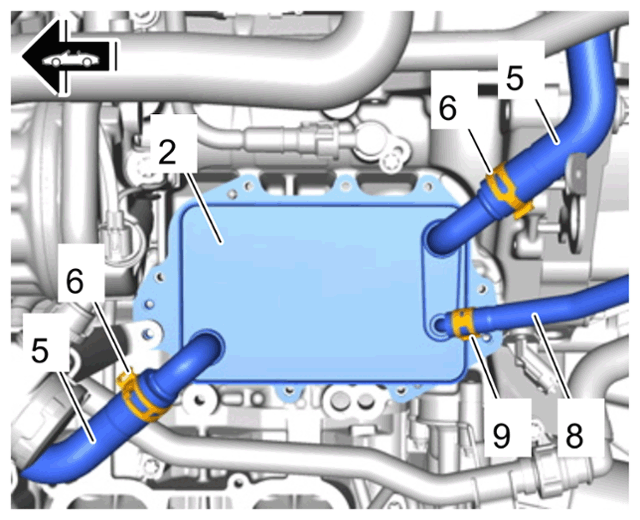

Pull off coolant hoses -5- .
1. 5.1 Clamp coolant hoses -5- using > 3094 - hose clamp .
2. 5.2 Loosen spring band clamps -6- , pull off coolant hoses -5- and collect emerging coolant.
Loosen spring band clamp -9- and pull off vent line -8- .
Remove heat exchanger -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat exchanger
