Removing Oil Pressure Control Valve
WARNING: This page is about a different variant/trim than selected.

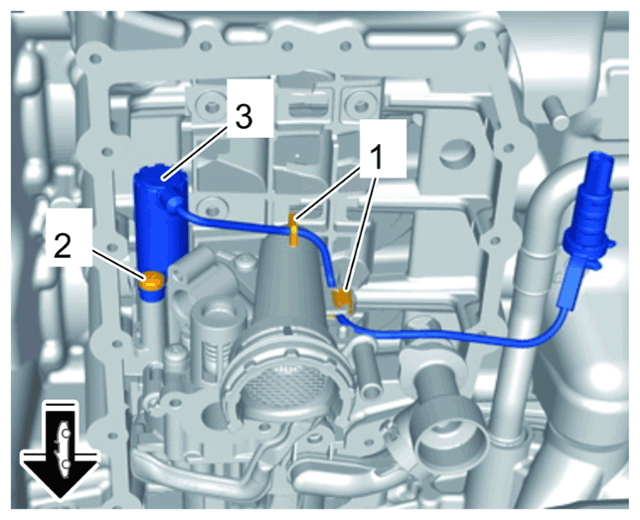

- Remove oil pressure control valve.
- 1.1 Loosen cable from the clips -1-
.
- 1.2 Unscrew and remove screw -2-
.
- 1.3 Pull off oil pressure control valve -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil pressure regulating valve
