Installing Oil Pressure Control Valve
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.
- Coat O-ring with a small amount of Kluber Syntheso Glep (Part No. 000.043.204.68).

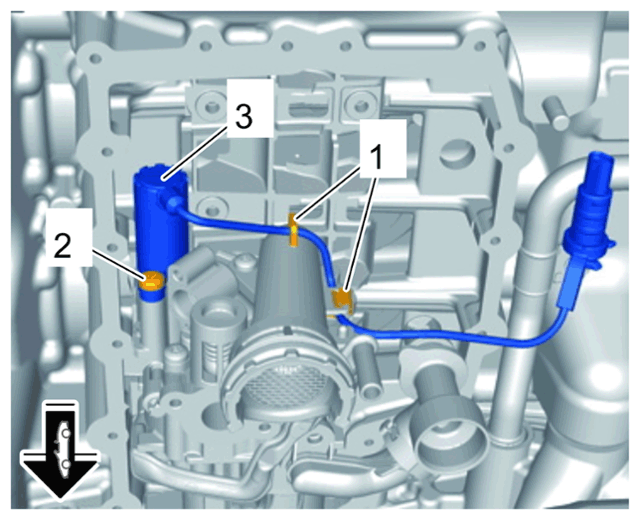

- Insert oil pressure control valve -3-
and tighten screw -2-
.
> Tightening torque 13 Nm (9.5 ftlb.)
- Clip in cable -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil pressure regulating valve
