Removing Oil Filler Neck On Luggage Compartment Side
WARNING: This page is about a different variant/trim than selected.
- Release oil filler neck -1-
(-arrows-
) and pull it up and out.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

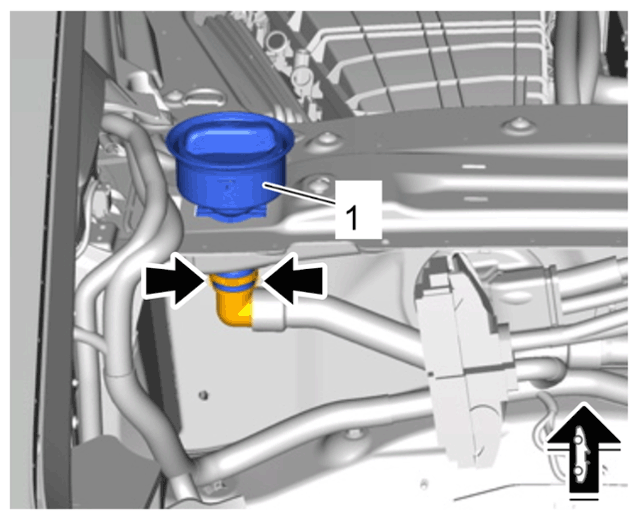

Pulling out oil filler neck
- Disconnect oil filler pipe -2-
from the connection piece -3-
(-arrow-
) and guide it out.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

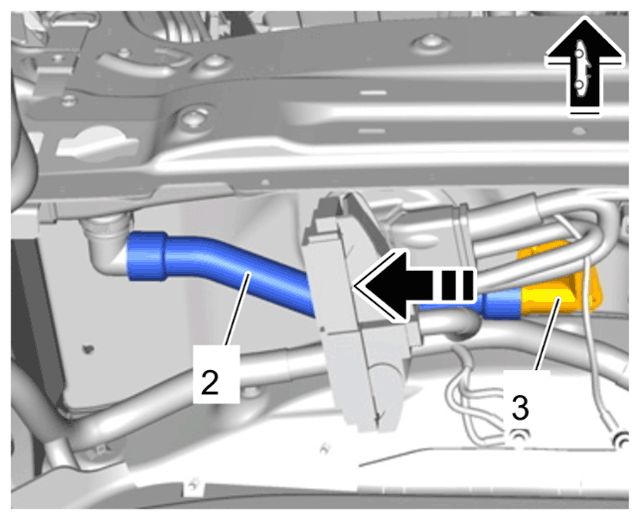

Oil filler pipe
