Removing Oil Filler Neck On Engine Compartment Side

WARNING: This page is about a different variant/trim than selected.
  1. Release and disconnect plug-in coupling on positive crankcase ventilation line -3-  .
  2. Unscrew fastening screws securing oil filler pipe to crankcase -2-  .
  3. Unscrew fastening screw securing oil filler pipe holder to holder -4-  .
  4. Loosen lines -6-  from the oil filler pipe -1-  so that the oil filler pipe -1-  is easily accessible.

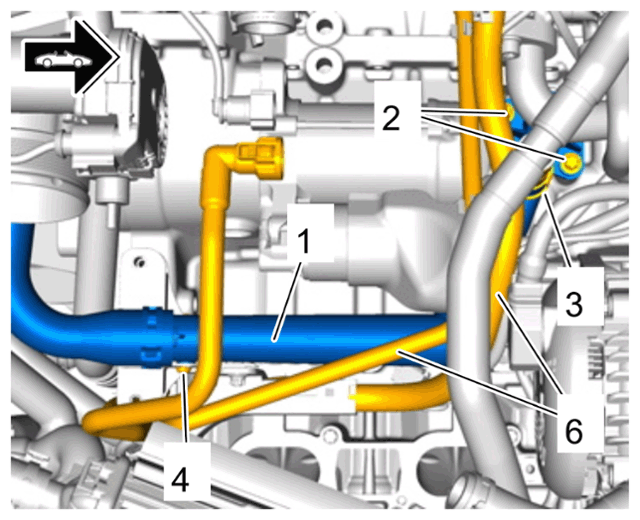

    G14944773Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil filler neck

  5. Release oil filler pipe -1-  and pull it off the connection piece -5-  .

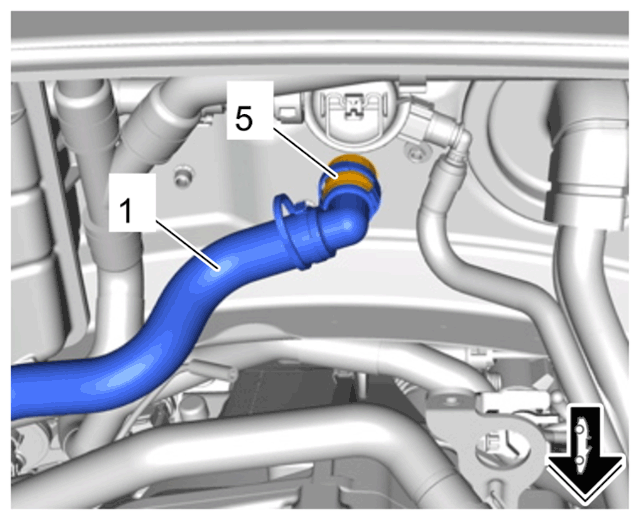

    G14944774Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil filler neck on body

  6. Guide oil filler pipe out of the engine compartment.
