Removing Oil-Level Sender
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fluid
- Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.
Information
Collect remaining quantity of oil when removing the sender.
- Unscrew and remove fastening screw -2- .
- Bend heat shield -1-
down as far as required until the oil-level sender is accessible.

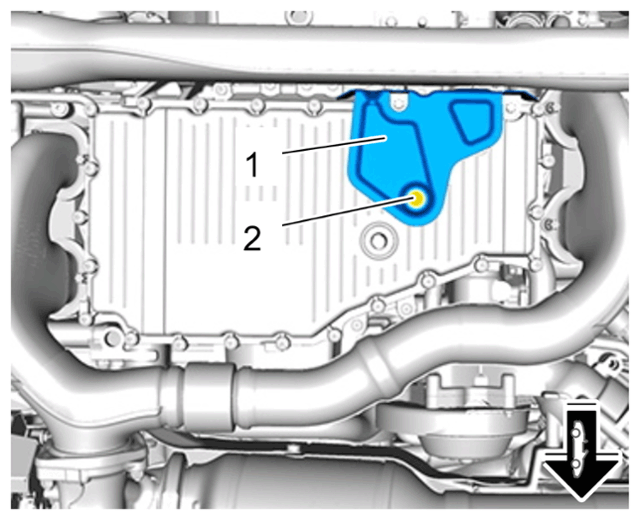

Heat shield on oil level indicator
- Release and disconnect electric plug connection -2- .
- Unscrew fastening screws -1-
.

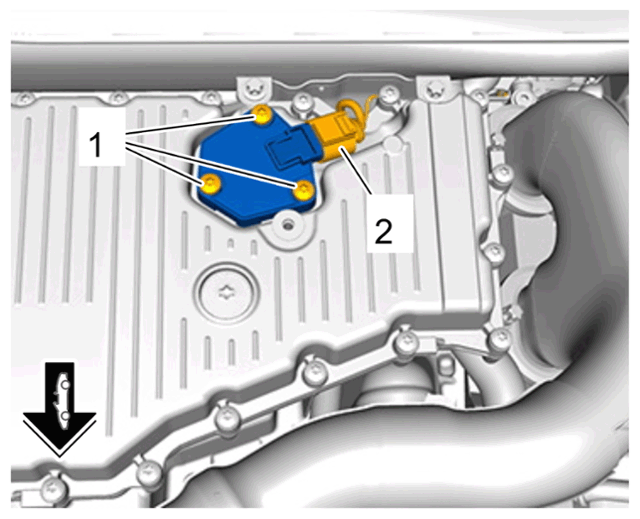

Oil-level sender
- Remove oil-level sender.
- Collect any remaining oil that emerges.
