Drain Engine Oil

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    • → Let the fluid cool down.
    • → Wear personal protective gear.

Information

  1. Open the rear luggage compartment lid.
  2. Open oil filler cover -1-  .

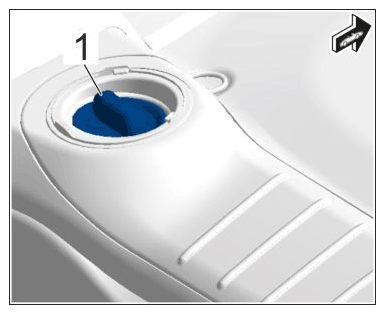

    G14944759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil filler cover

  3. Unscrew oil drain plug on the oil pan and drain engine oil into a suitable container.
    1. 3.1 Replace sealing ring.
  4. After draining the engine oil, fit oil drain plug with a new sealing ring.

    > Tightening torque 50 Nm (37 ftlb.)
